Rear Seat Back Cushion Cover And Pad Replacement (Bucket)

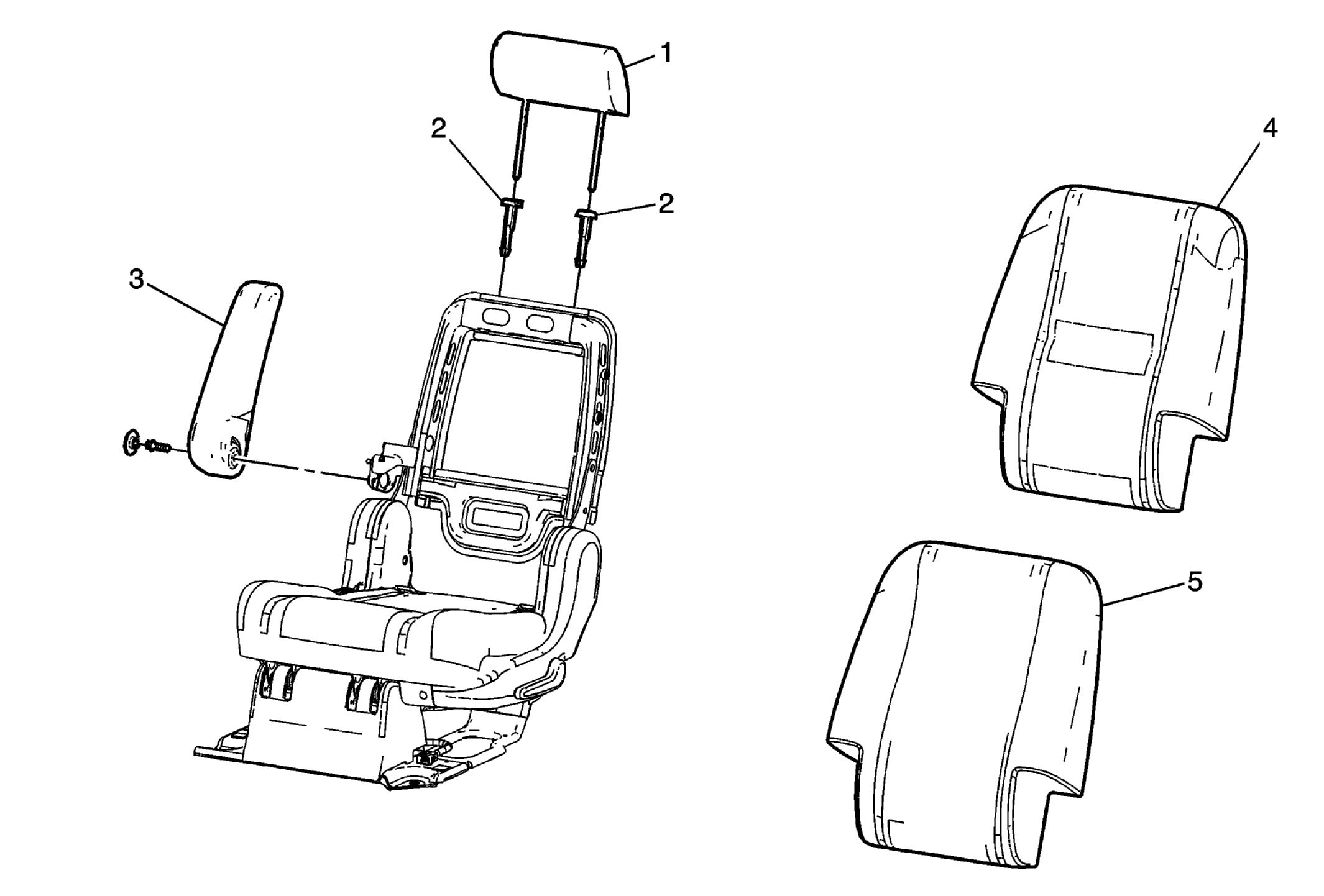

Fig 1: Rear Seat Back Cushion Cover And Pad

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation (Bucket) . Remove the rear seat hard restraint. Refer to Rear Seat Head Restraint Replacement . Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement (Bucket) .
1	Rear Seat Head Restraint
2	Rear Seat Head Restraint Guides
3	Rear Seat Armrest
4	Rear Seat Back Cushion Cover Procedure Disconnect the seat back cushion cover j-channel from the seat cushion frame. Disconnect the electrical connector if equipped with heated seat. Pull the seat back cushion cover away from the seat cushion pad to disengage the hook and loop fasteners.
5	Rear Seat Back Cushion Pad Procedure Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement .
