Rear Seat Cushion Cover And Pad Replacement (60/40 Bench)

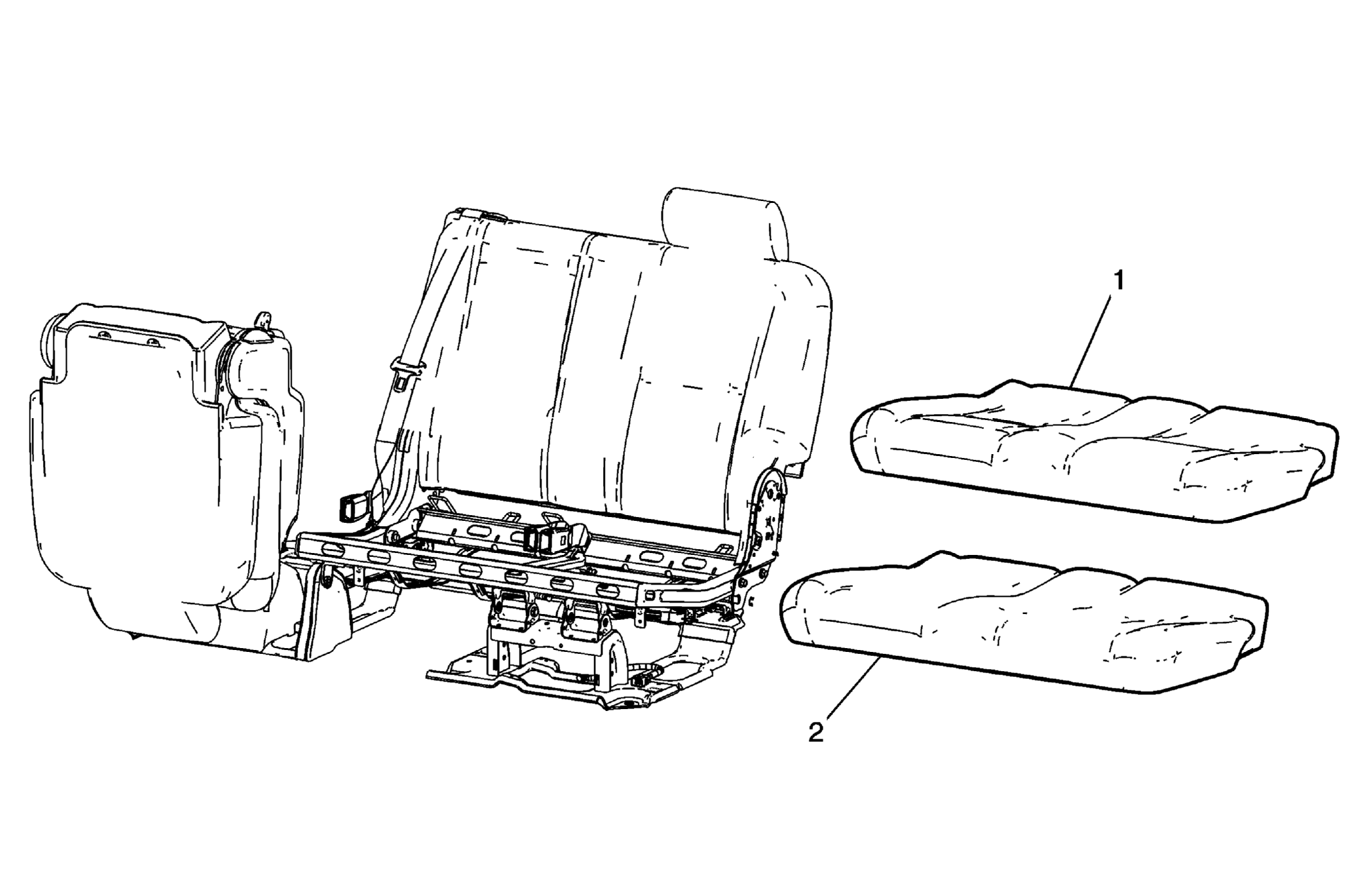

Fig 1: View Of Rear Seat Cushion Cover & Pad
GM1685298Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat cushion trim panel. Refer to Rear Seat Cushion Trim Panel Replacement (60/40 Bench) .
  2. For the 60% side, remove the rear seat belt buckle fastener. Slide the belt through the cover and pad in order to remove the cover completely. Refer to Rear Seat Center Buckle Side Belt Replacement .
1 Rear Seat Cushion Cover

Procedure

  1. Disengage the seat cushion cover j-channel from the seat cushion frame.
  2. Disconnect the electrical connectors, if equipped with heat.
2 Rear Seat Cushion Pad

Procedure

  1. Disengage the hook and loop fastener strips and U-channels retaining the cover to the pad.
  2. Separate the seat cushion cover from the pad.
