Body Lock Pillar Garnish Molding Replacement

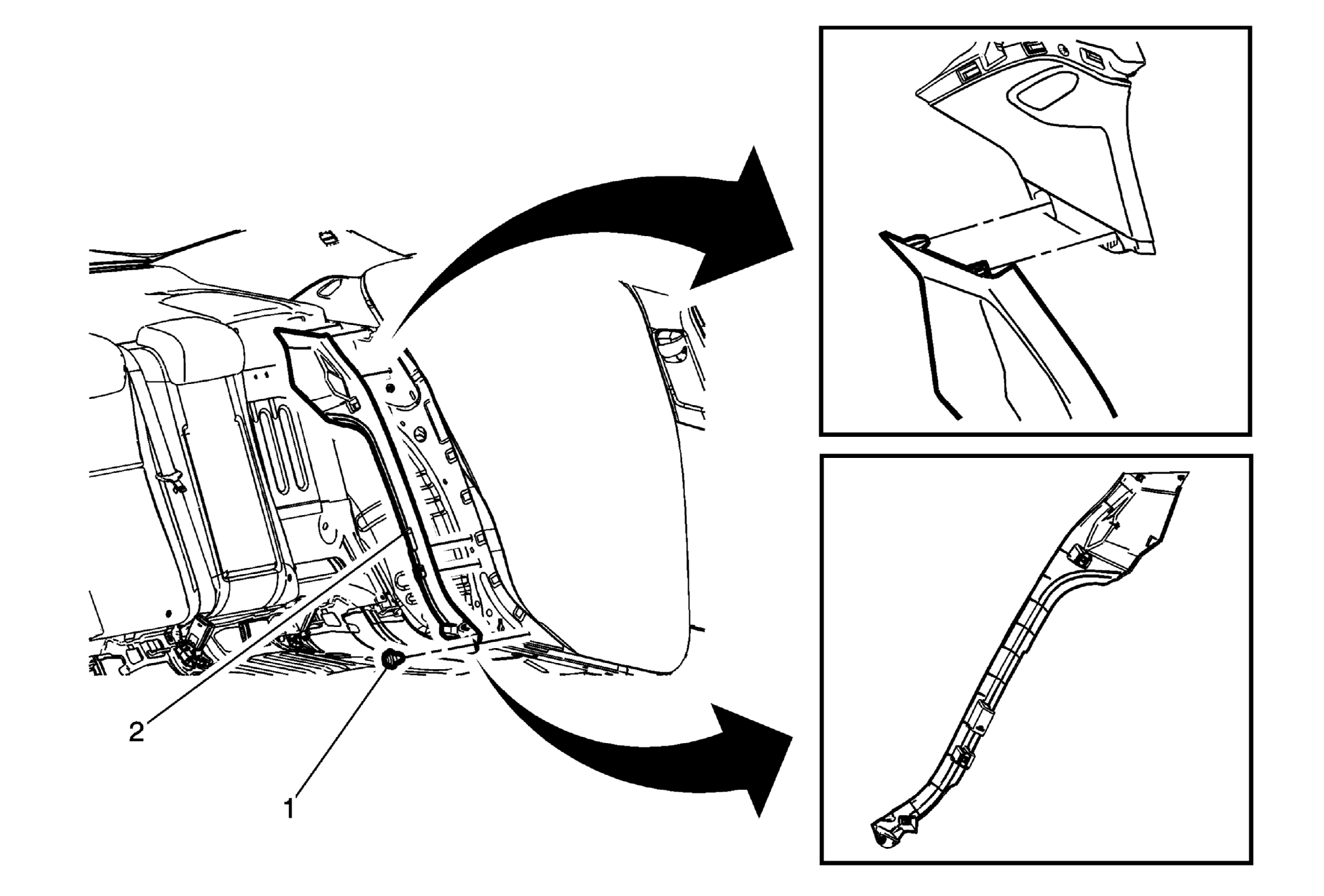

Fig 1: Body Lock Pillar Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (Split Folding Side Cushion Sedan)Rear Seat Back Cushion Removal and Installation (Split Folding Center Cushion Sedan)Rear Seat Back Cushion Removal and Installation (Fixed Back) . Remove the rear side door sill garnish molding. Refer to Rear Side Door Sill Garnish Molding Replacement .
1	Body Lock Pillar Garnish Molding Clip
2	Body Lock Pillar Garnish Molding Assembly Procedure Use a trim tool or equivalent to aid in the removal.

Callout

Component Name

Preliminary Procedures

Body Lock Pillar Garnish Molding Clip

Body Lock Pillar Garnish Molding Assembly
Procedure
Use a trim tool or equivalent to aid in the removal.
