Rear Side Door Sill Garnish Molding Replacement

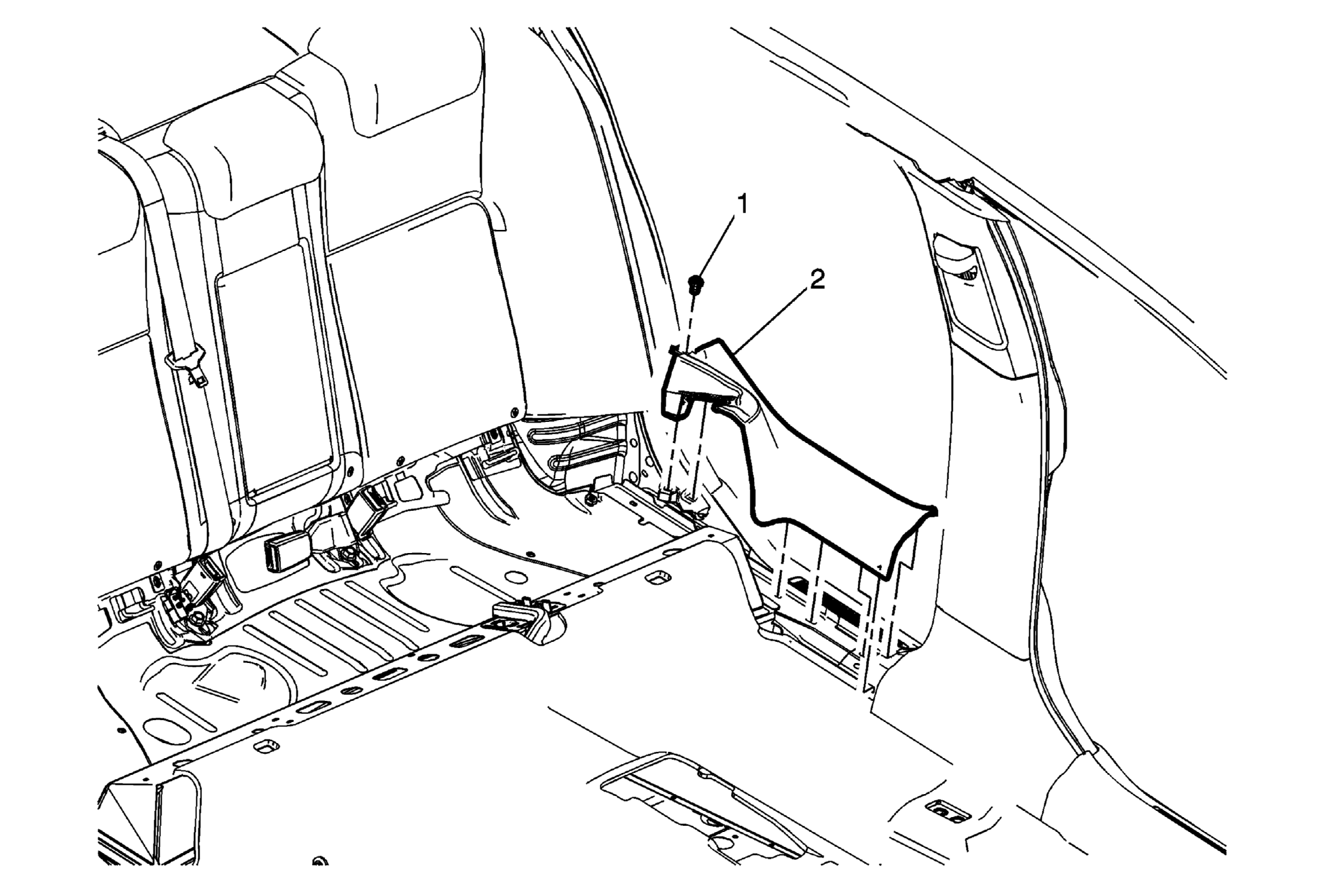

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation . |
|
| 1 | Body Lock Pillar Lower Trim Panel Fastener
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Side Door Sill Garnish Molding Assembly |
