Engine Mount Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

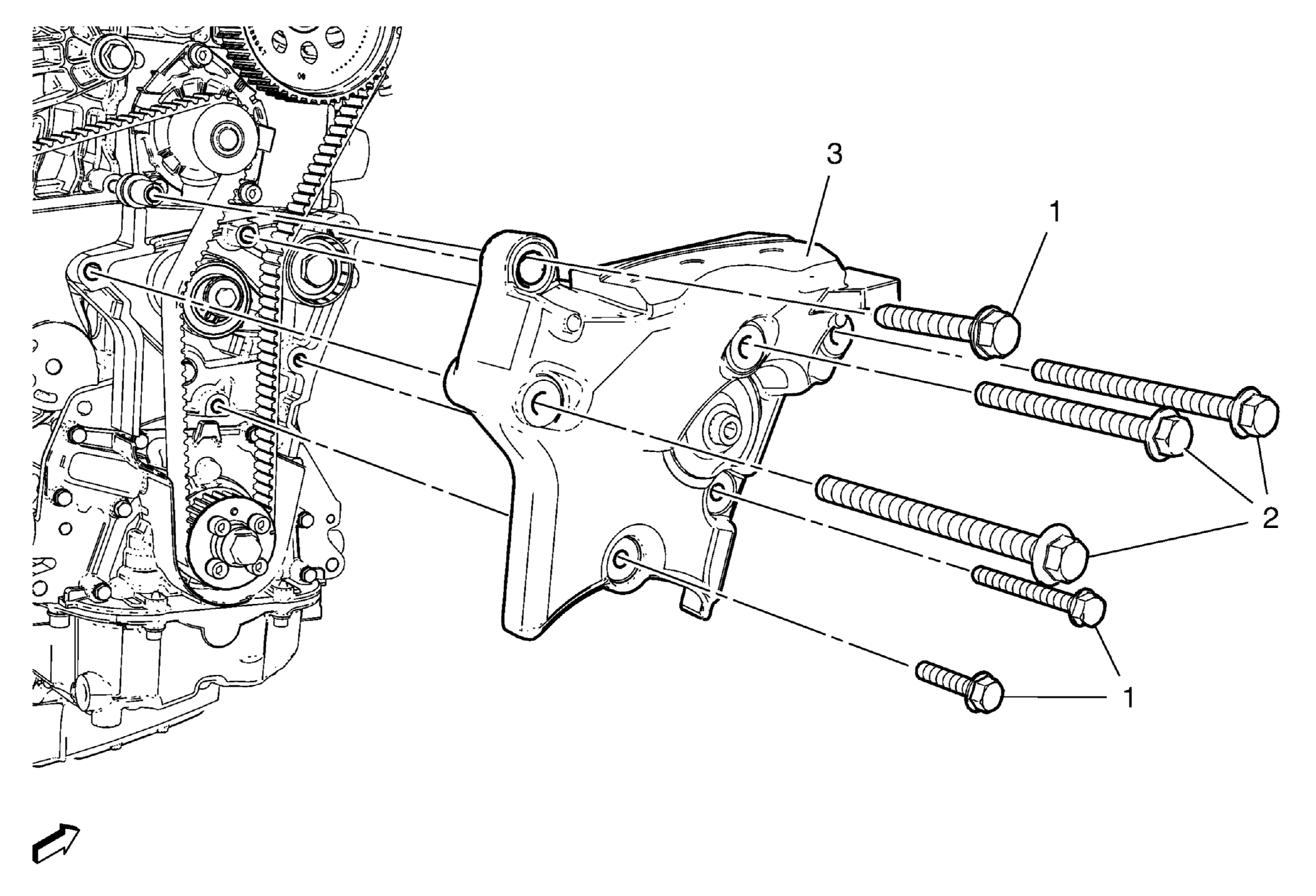

Fig 1: Identifying Engine Mount Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the crankshaft pulley. Refer to Crankshaft Pulley Replacement . Remove the belt idler pulley - engine mount side. Refer to Belt Idler Pulley Replacement - Engine Mount Side . Remove the timing belt front cover. Refer to Timing Belt Front Cover Replacement . Remove the engine mount. Refer to Engine Mount Replacement .
1	Engine Mount Bracket Bolt M8 (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the 2 lower bolts. TIP: Mind the different length of bolt. Tighten 25 N.m (18 lb ft)
2	Engine Mount Bracket Bolt M10 (Qty: 3) Procedure Fix the engine lifter to the engine lift brackets. TIP: Mind the different length of bolt. Tighten 50 N.m (37 lb ft)
3	Engine Mount Bracket
