Engine Mount Replacement

WARNING: This page is about a different variant/trim than selected.

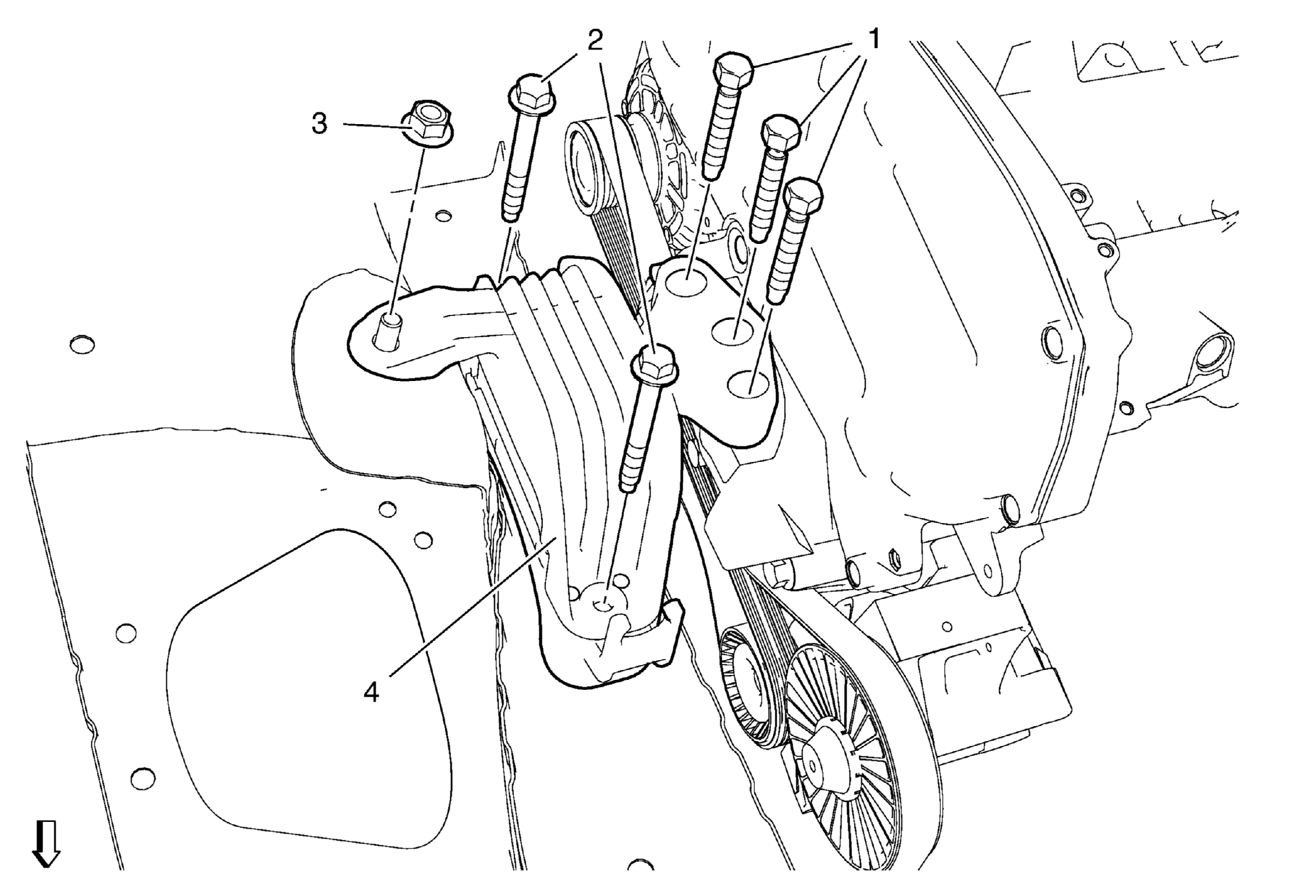

Fig 1: Identifying Engine Mount

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Install the engine support fixture. Refer to Engine Support Fixture .
1	Engine Mount Bolt to Engine Mount Bracket (Qty: 3) CAUTION: Refer to Fastener Caution . CAUTION: Refer to Torque-to-Yield Fastener Caution . Tighten First Pass: 50 N.m (37 lb ft) Final Pass: 60 - 70 degrees, using the EN-45059 meter Special Tools EN-45059 Angle Meter For equivalent regional tools, refer to Special Tools .
2	Engine Mount Bolt (Qty: 2) Tighten 62 N.m (46 lb ft)
3	Engine Mount Nut Tighten 62 N.m (46 lb ft)
4	Engine Mount
