Crankshaft Pulley Replacement

WARNING: This page is about a different variant/trim than selected.

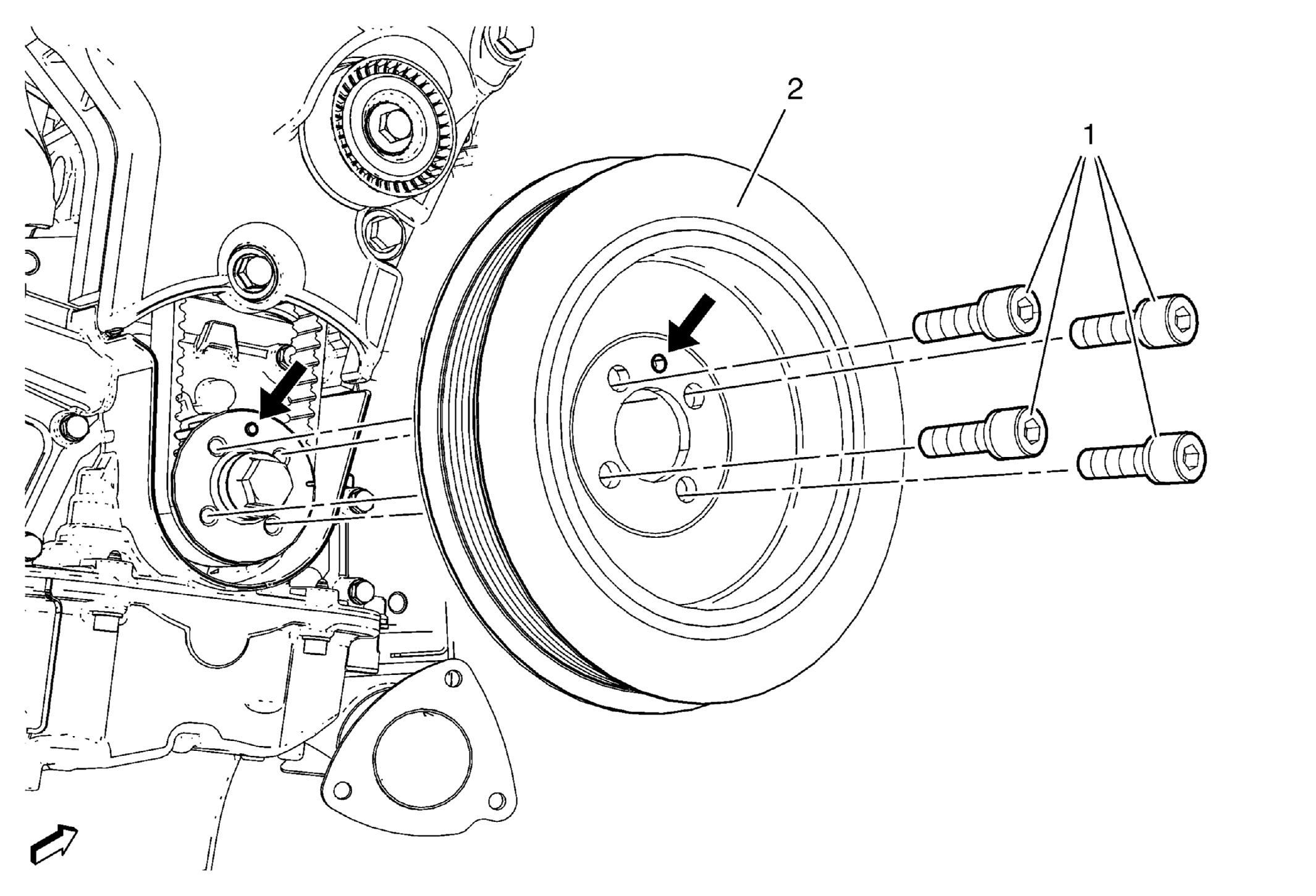

Fig 1: Identifying Crankshaft Pulley

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Remove the generator, air conditioning compressor and power steering pump belt. Refer to Generator, Air Conditioning Compressor and Power Steering Pump Belt Replacement .
1	Crankshaft Pulley Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Install a wrench on crankshaft sprocket bolt in order to hold the crankshaft. TIP: The center bolt must not be loosen. Tighten 25 N.m (18 lb ft)
2	Crankshaft Pulley Procedure Make sure the guide pin is in its recess (see arrows).

Callout

Component Name

Preliminary Procedures

Open the hood.
Remove the generator, air conditioning compressor and power steering pump belt. Refer to Generator, Air Conditioning Compressor and Power Steering Pump Belt Replacement .

Crankshaft Pulley Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Procedure
Install a wrench on crankshaft sprocket bolt in order to hold the crankshaft.
TIP: The center bolt must not be loosen.
Tighten
25 N.m (18 lb ft)

Crankshaft Pulley
Procedure
Make sure the guide pin is in its recess (see arrows).
