Timing Belt Front Cover Replacement

WARNING: This page is about a different variant/trim than selected.

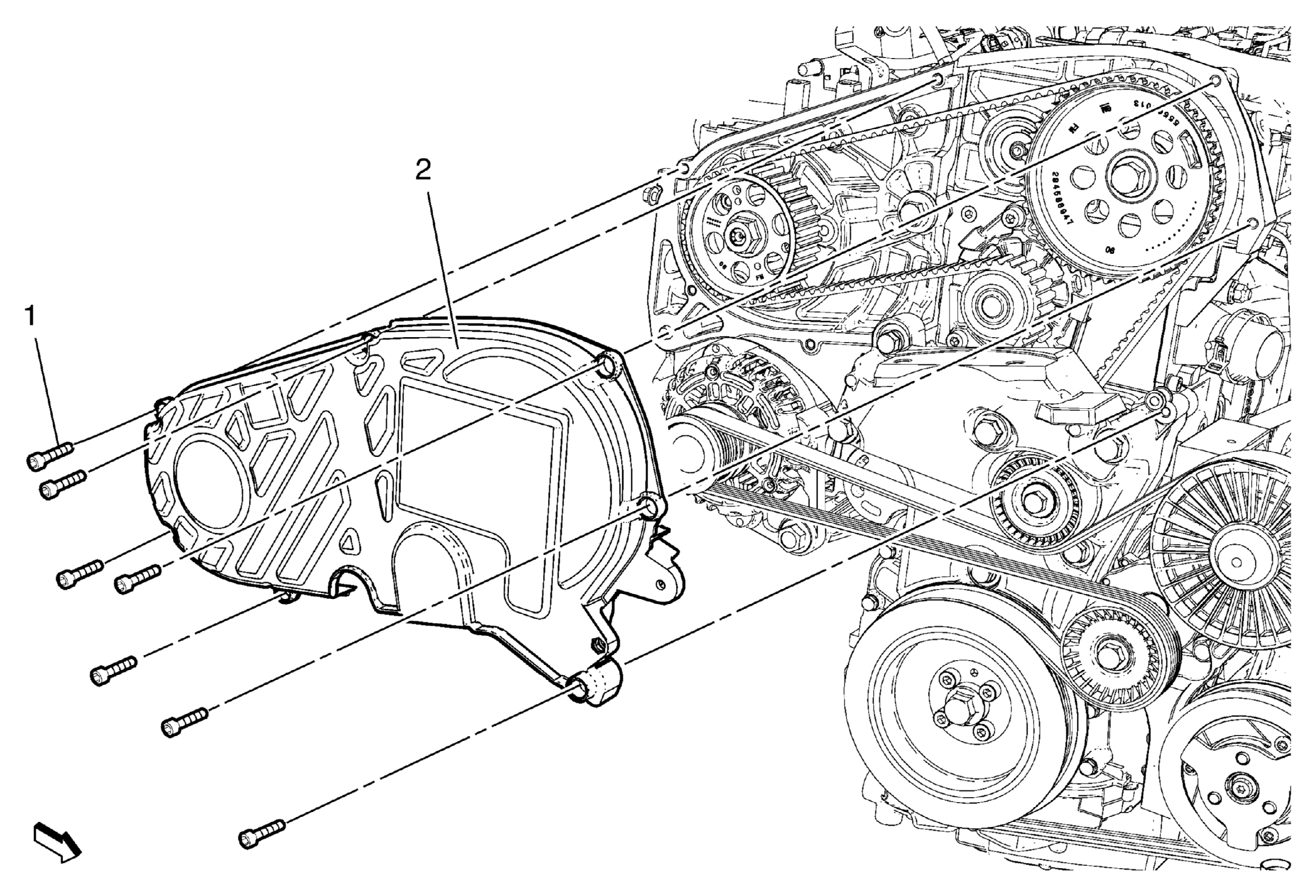

Fig 1: Timing Belt Front Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine sight shield. Remove the air cleaner. Refer to Air Cleaner Assembly Replacement . Unclip the wiring harness from the timing belt front cover.
1	Timing Belt Front Cover Bolt (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Timing Belt Front Cover

Callout

Component Name

Preliminary Procedures

Timing Belt Front Cover Bolt (Qty: 7)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Timing Belt Front Cover
