Rear Seat Back Cushion Cover and Pad Replacement - Right Side

Preliminary Procedures

1. Remove the rear seat back - right side. Refer to Rear Seat Removal and Installation (40 Percent Seat)  and Rear Seat Removal and Installation (60 Percent Seat) .
2. Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement .
3. Remove the rear seat belt opening cover. Refer to Rear Seat Belt Opening Cover Replacement
4. Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement
5. Remove the right rear seat back cushion latch release knob bezel. Refer to Rear Seat Back Cushion Latch Release Knob Bezel Replacement (40 Percent Seat)  and Rear Seat Back Cushion Latch Release Knob Bezel Replacement (60 Percent Seat)
6. Remove the rear seat back cushion pivot support. Refer to Rear Seat Back Cushion Pivot Support Replacement

Procedure

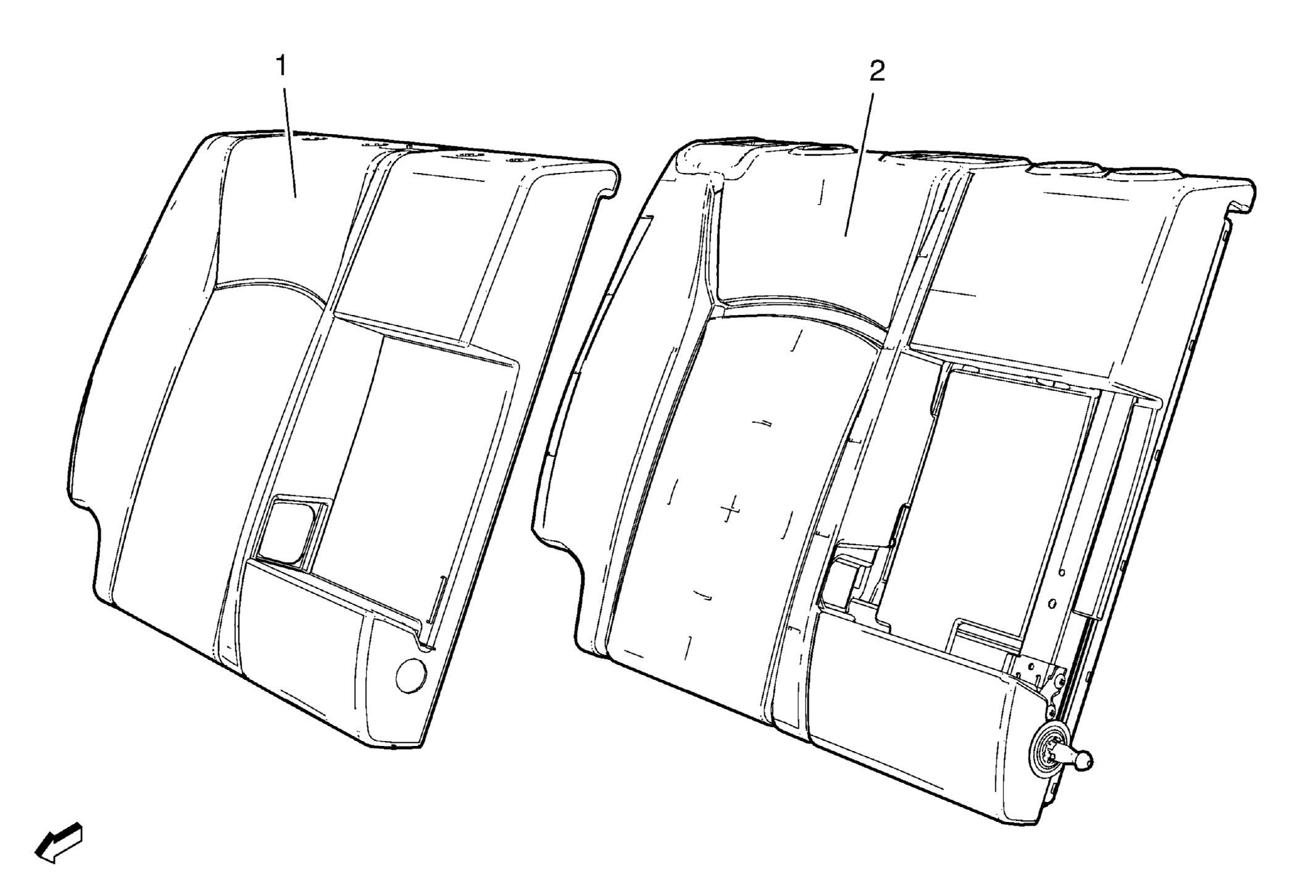

1. Remove the J-channels from the seat back cover.
2. Remove seat back cushion cover from Velcro.
