Rear Seat Armrest Replacement

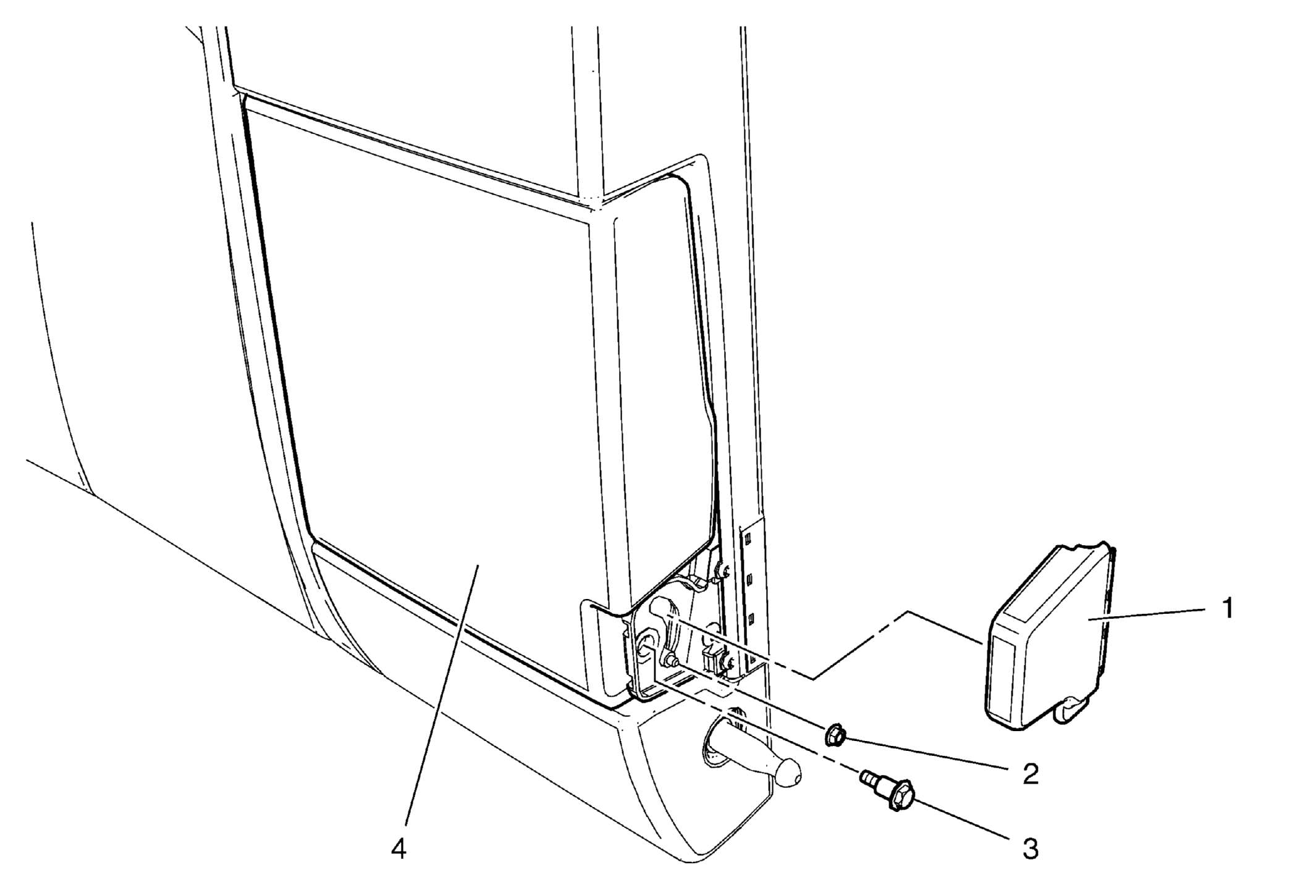

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear seat back - right side. Refer to Rear Seat Removal and Installation (40 Percent Seat) and Rear Seat Removal and Installation (60 Percent Seat) . |
|
| 1 | Rear Seat Armrest Hinge Cover Procedure Release four tabs and carefully slide the cover forward. |
| 2 | Rear Seat Armrest Hinge Nut
CAUTION:
Refer to Fastener Caution
. Tighten 4.5 N.m (40 lb in) |
| 3 | Rear Seat Armrest Hinge Bolt Tighten 9 N.m (80 lb in) |
| 4 | Rear Seat Armrest Procedure Position the stud so that it could pass the armrest bracket. |
