Rear Seat Back Cushion Pivot Support Replacement

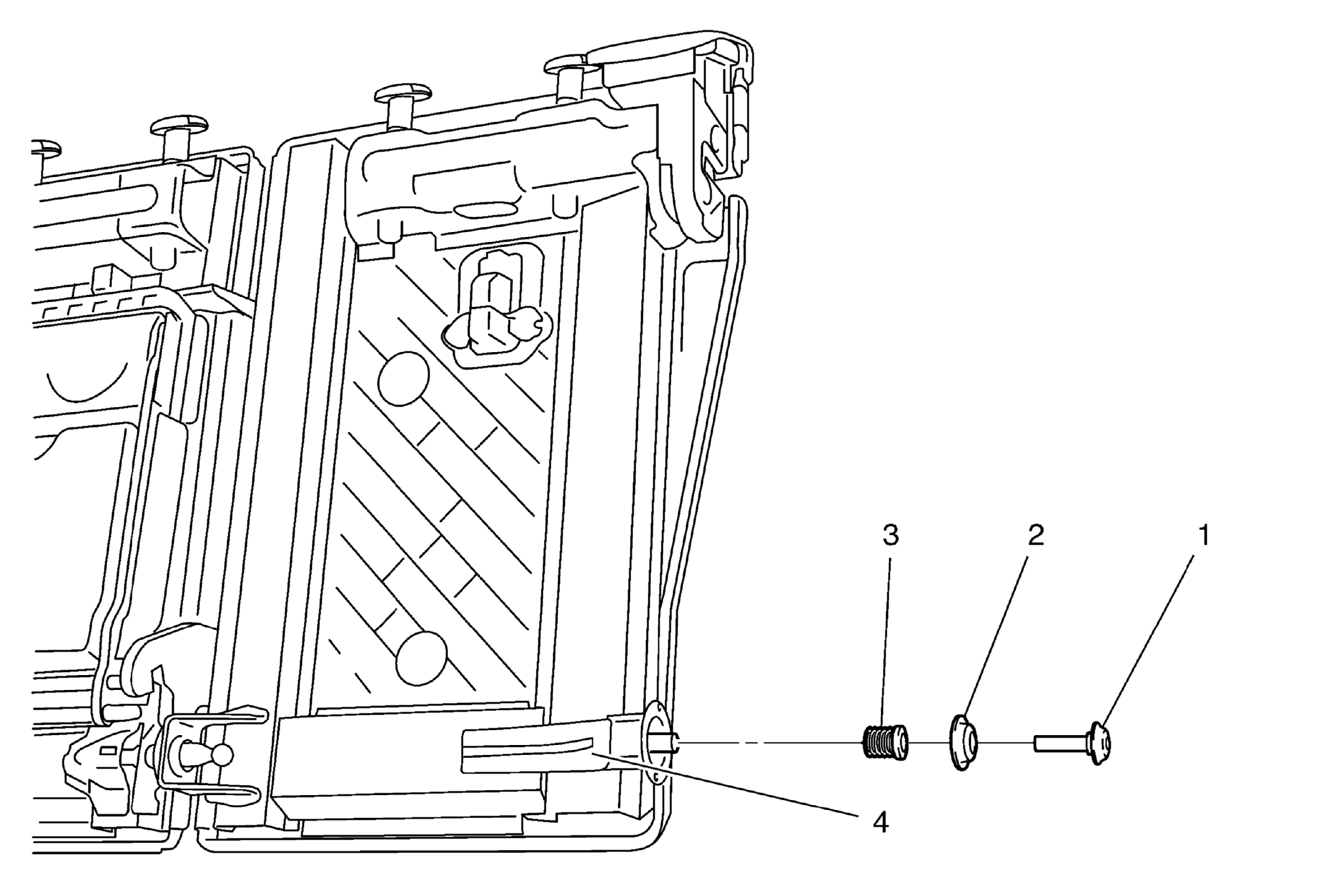

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the rear seat back. Refer to Rear Seat Removal and Installation (40 Percent Seat) and Rear Seat Removal and Installation (60 Percent Seat) . |
|
| 1 | Rear Seat Back Outer Pivot Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 23 N.m (17 lb ft) |
| 2 | Rear Seat Back Cushion Pivot Bolt Bushing |
| 3 | Rear Seat Back Cushion Outer Pivot Bolt Spring |
| 4 | Rear Seat Back Cushion Pivot Support |
