Belt Idler Pulley Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

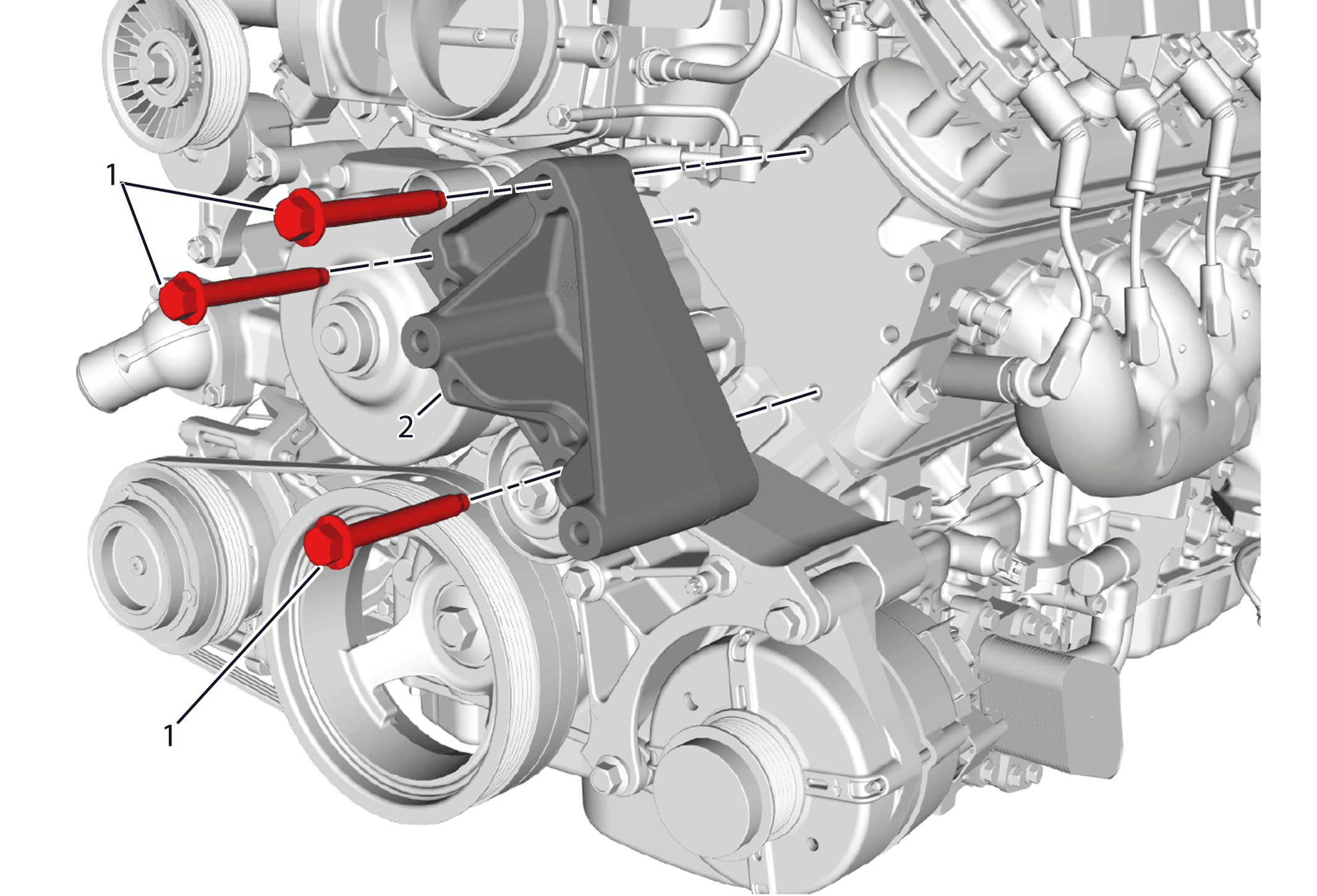

Fig 1: Belt Idler Pulley Bracket
GM4089306Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drive Belt Idler Pulley Replacement (LSA, LS7 Upper) Drive Belt Idler Pulley Replacement (LSA, LS7 Lower) Drive Belt Idler Pulley Replacement (L99, LS3 Lower) Drive Belt Idler Pulley Replacement (L99, LS3 Uppers)
1 Drive Belt Idler Pulley Bracket Fastener (3x)
CAUTION:

Refer to Fastener Caution .


Tighten
50 N.m (37 lb ft)
2 Drive Belt Idler Pulley Bracket
