Drive Belt Idler Pulley Replacement (LSA, LS7 Upper)

WARNING: This page is about a different variant/trim than selected.

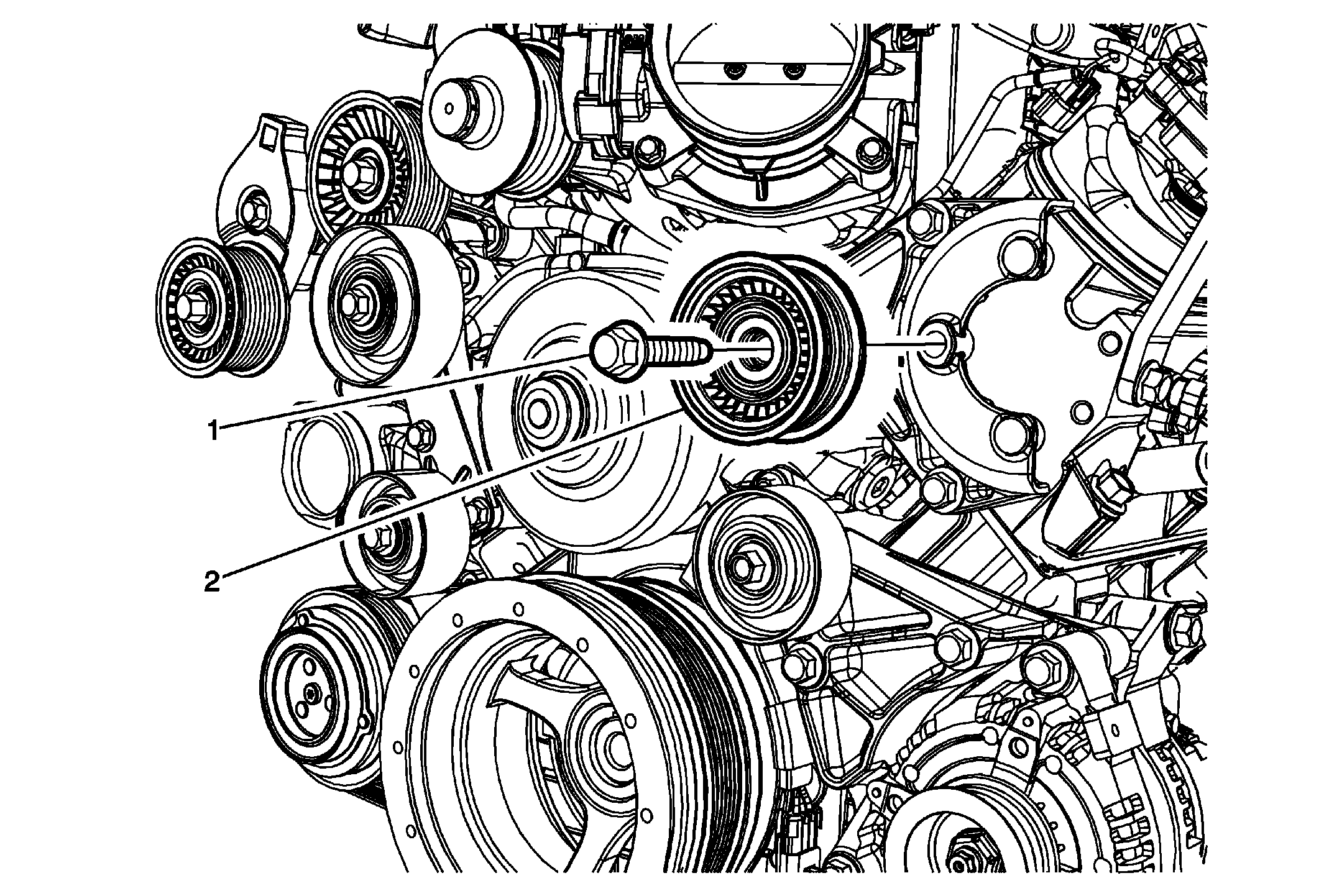

Fig 1: Drive Belt Idler Pulley & Fastener (LSA, LS7 Upper)
GM2718406Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the drive belt. Refer to Drive Belt Replacement - Accessory (LSA) Drive Belt Replacement - Accessory (LS7) .
1 Upper Drive Belt Idler Pulley Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
58 N.m (43 lb ft)
2 Upper Drive Belt Idler Pulley
