Drive Belt Idler Pulley Replacement (L99, LS3 Uppers)
WARNING: This page is about a different variant/trim than selected.

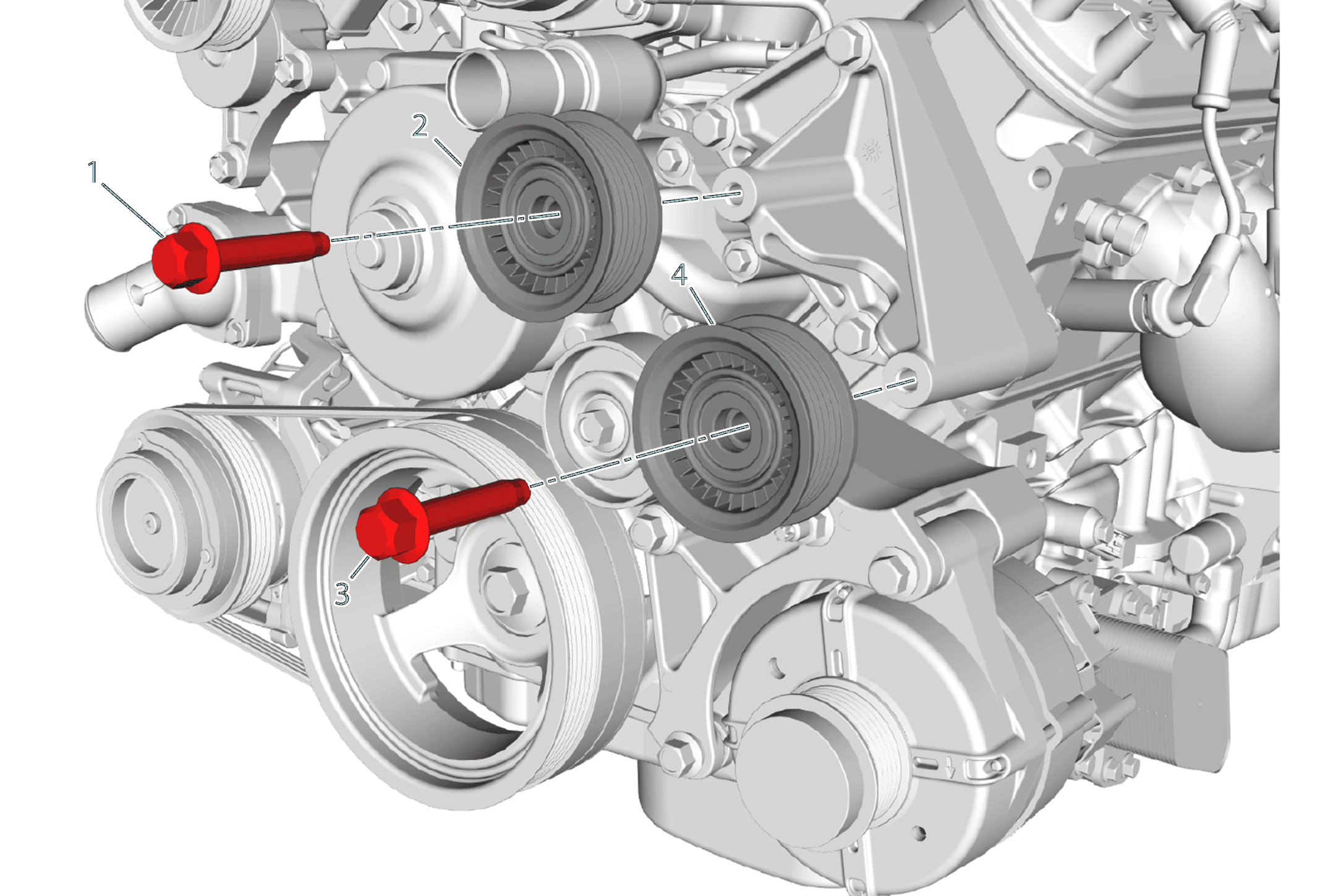

| Callout | Component Name |
|---|---|
| Preliminary Procedure Drive Belt Replacement - Accessory (L99, LS3) . |
|
| 1 | Drive Belt Idler Pulley Fastener
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 58 N.m (43 lb ft) |
| 2 | Drive Belt Idler Pulley |
| 3 | Drive Belt Idler Pulley Fastener Tighten 58 N.m (43 lb ft) |
| 4 | Drive Belt Idler Pulley |
