Drive Belt Idler Pulley Replacement (L99, LS3 Lower)

WARNING: This page is about a different variant/trim than selected.

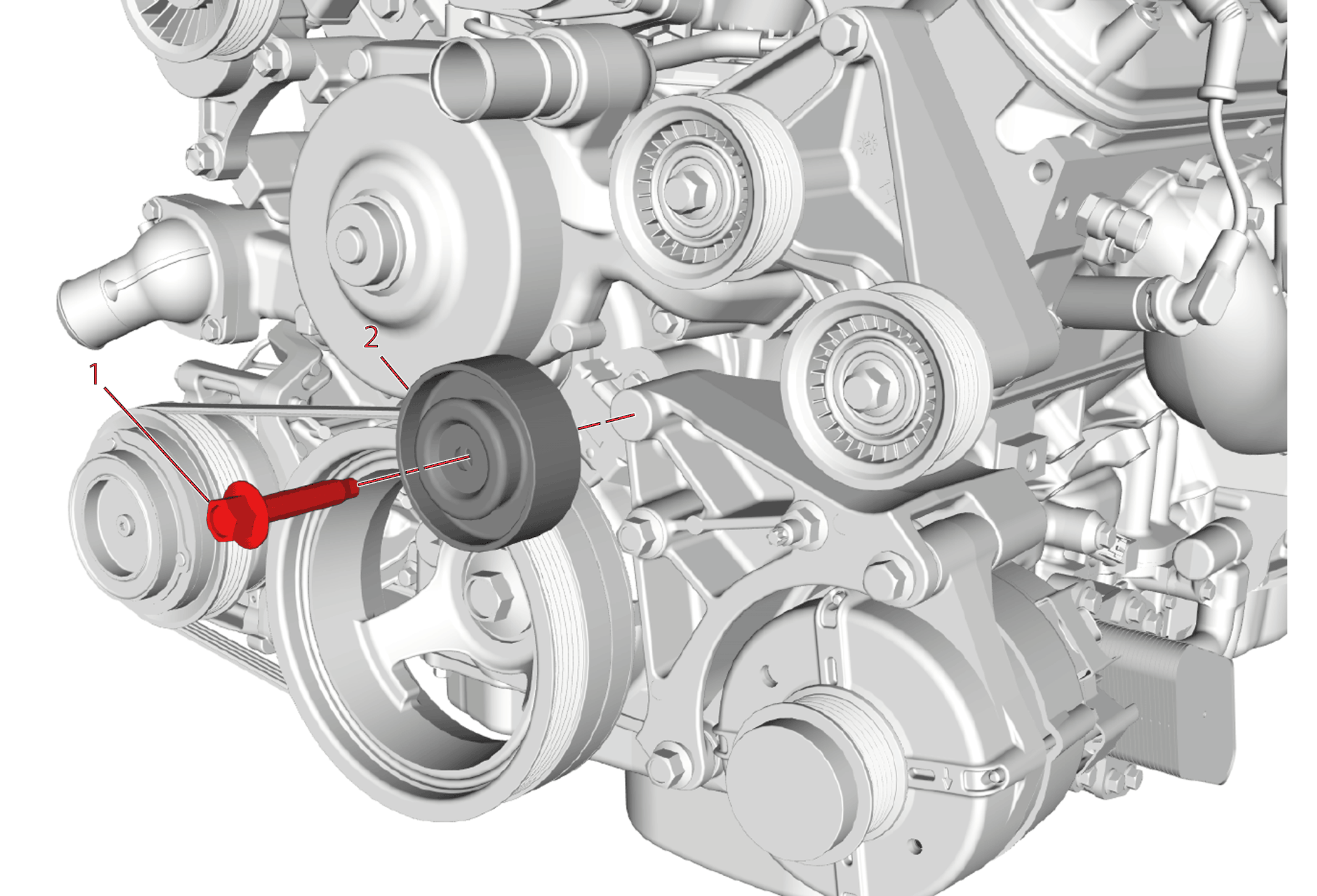

Fig 1: Drive Belt Idler Pulley (L99, LS3 Lower)
GM4089231Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drive Belt Replacement - Accessory (L99, LS3)
1 Drive Belt Idler Pulley Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
58 N.m (43 lb ft)
2 Drive Belt Idler Pulley
