Drive Belt Idler Pulley Replacement (LSA, LS7 Lower)

WARNING: This page is about a different variant/trim than selected.

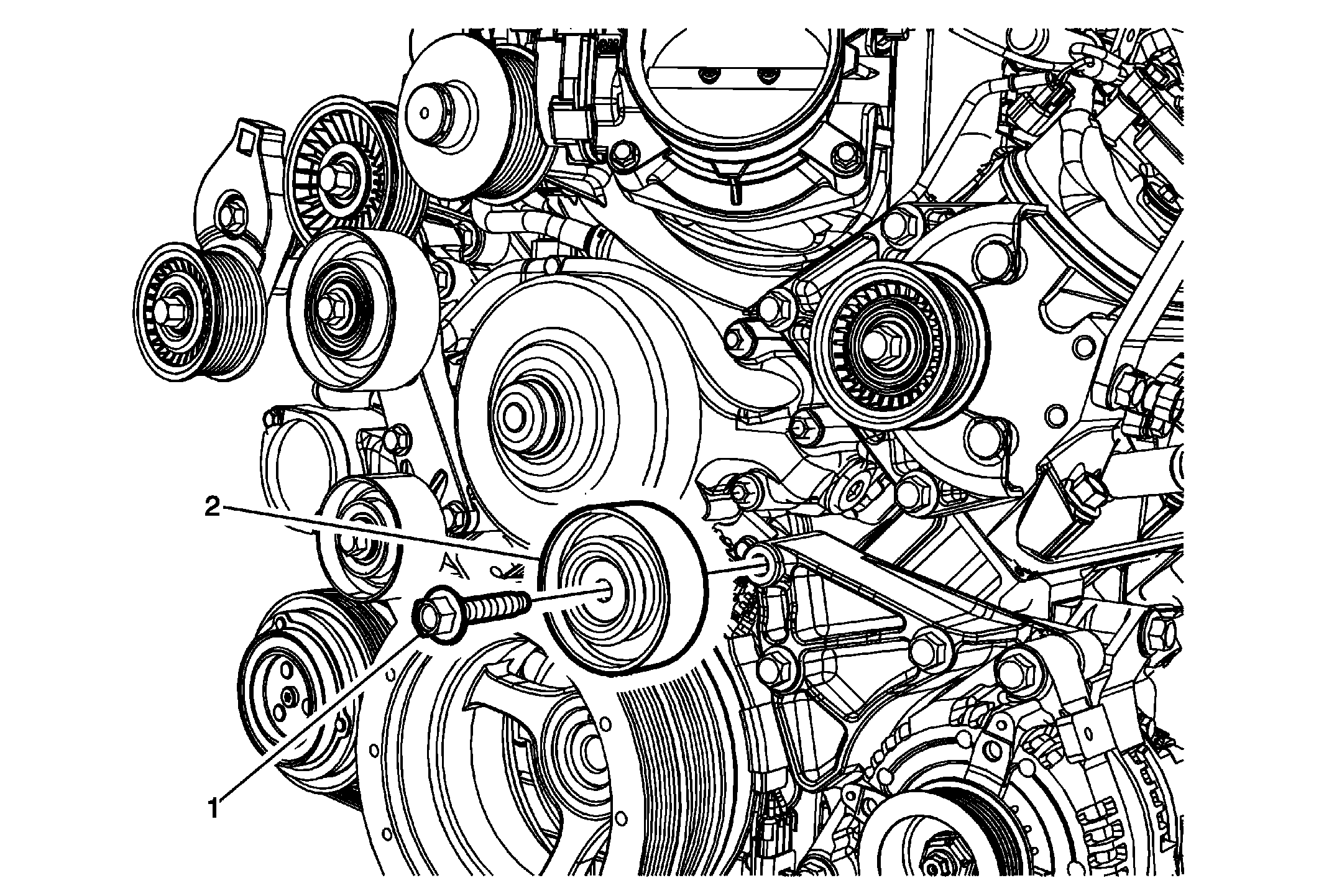

Fig 1: Drive Belt Idler Pulley & Fastener (LSA, LS7 Lower)
GM2718401Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the drive belt. Refer to Drive Belt Replacement - Accessory (LSA) Drive Belt Replacement - Accessory (LS7) .
1 Lower Drive Belt Idler Pulley Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
45 N.m (33 lb ft)
2 Lower Drive Belt Idler Pulley
