Driver or Passenger Seat Back Cushion Frame Replacement

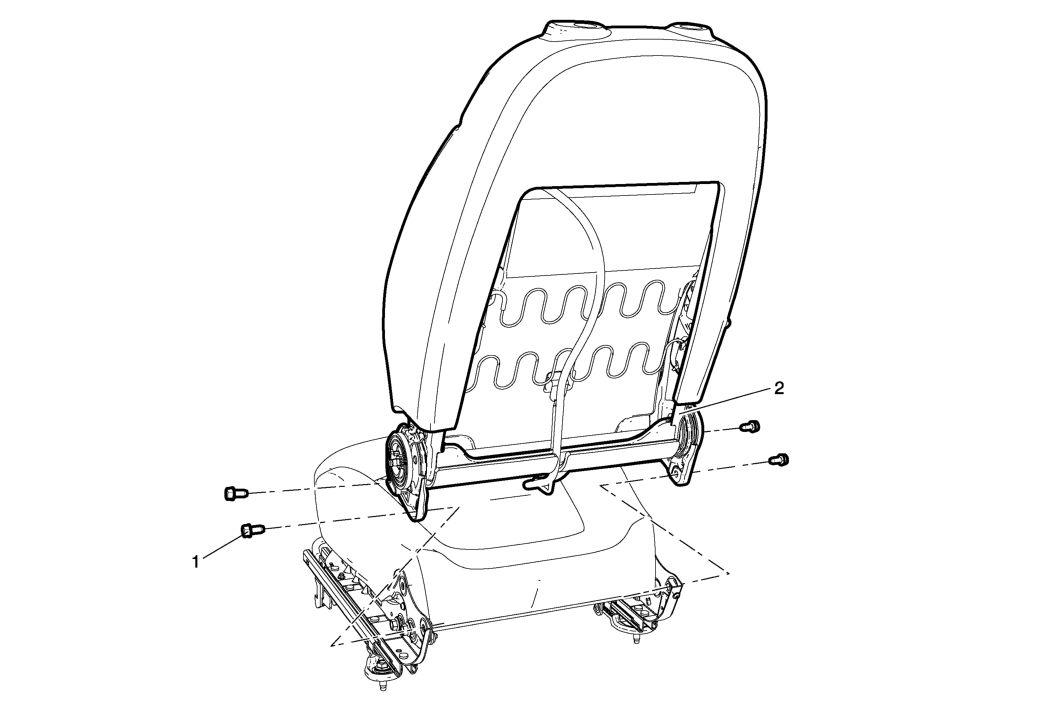

Fig 1: Driver or Passenger Seat Back Cushion Frame

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the front seat inner trim panel. Refer to Front Seat Cushion Inner Trim Panel Replacement . Remove the front seat outer trim panel. Refer to Front Seat Cushion Outer Trim Panel Replacement .
1	Front Seat Back Cushion Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Back Cushion Frame Procedure Disconnect electrical connectors as needed. Remove the inflatable restraint side impact module. Refer to Front Seat Outboard Seat Back Airbag Replacement . If replacing with a new front seat back frame, transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Seat Back Cushion Frame Bolt (Qty: 4)

CAUTION:

Tighten
45 N.m (33 lb ft)

Front Seat Back Cushion Frame

Procedure

Disconnect electrical connectors as needed.
Remove the inflatable restraint side impact module. Refer to Front Seat Outboard Seat Back Airbag Replacement .
If replacing with a new front seat back frame, transfer components as necessary.
