Front Seat Cushion Outer Trim Panel Replacement

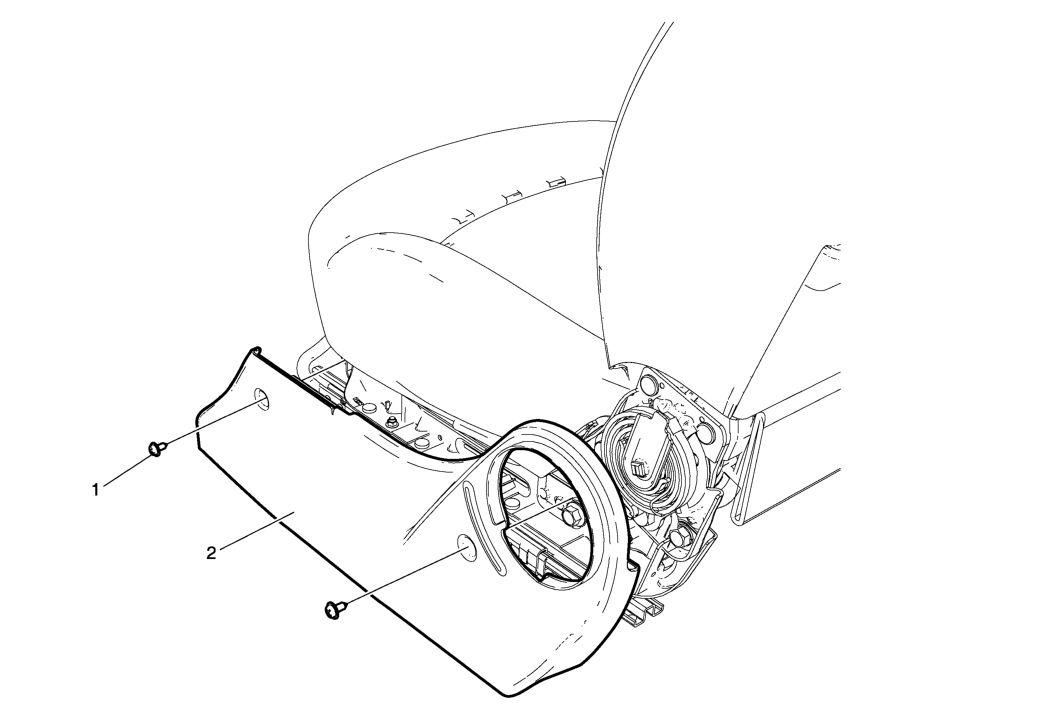

Fig 1: Front Seat Cushion Outer Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat recliner handle. Refer to Front Seat Back Recliner Handle Replacement . Remove the front seat adjuster handle knob. Refer to Driver or Passenger Seat Adjuster Handle Knob Replacement .
1	Front Seat Outer Cover Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5Y (22 lb in)
2	Front Seat Outer Cover

Callout

Component Name

Preliminary Procedure

Remove the front seat recliner handle. Refer to Front Seat Back Recliner Handle Replacement .
Remove the front seat adjuster handle knob. Refer to Driver or Passenger Seat Adjuster Handle Knob Replacement .

Front Seat Outer Cover Screw (Qty: 2)

CAUTION:

Tighten
2.5Y (22 lb in)

Front Seat Outer Cover
