Driver or Passenger Seat Removal and Installation

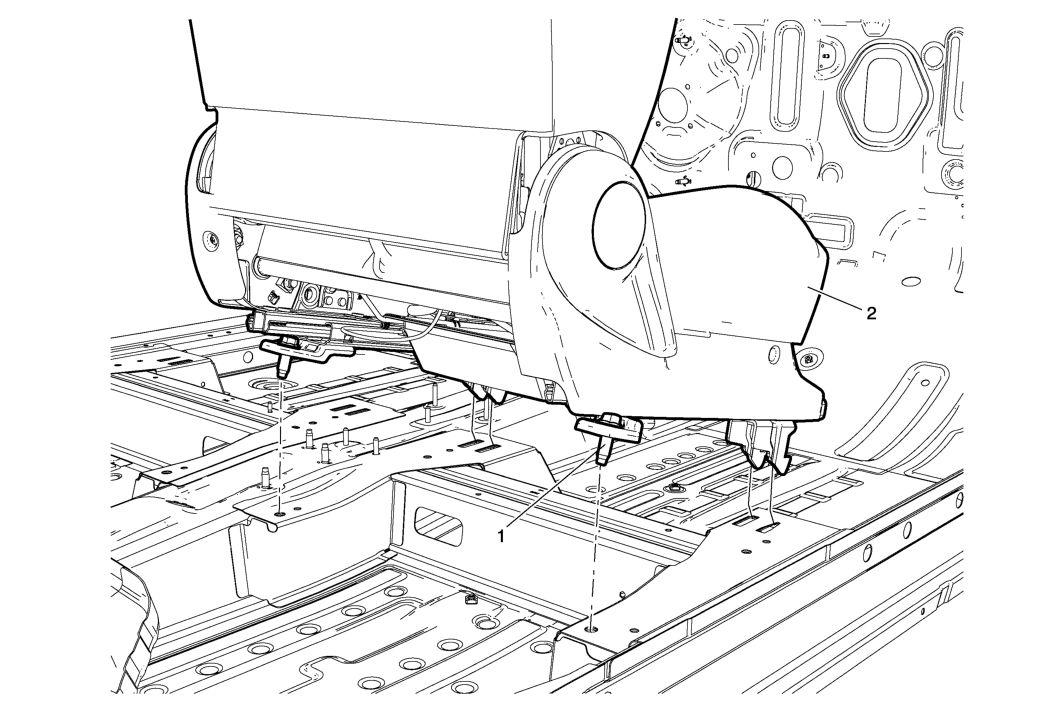

Fig 1: Seat Assembly

Courtesy of GENERAL MOTORS COMPANY

Driver or Passenger Seat Removal and Installation

Callout	Component Name
1	Front Seat Mounting Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . TIP:  Adjust the seat forward or rearward to access the nuts. Tighten  45 N.m (33 lb ft)
2	Seat Assembly Procedure  Disconnect the electrical connectors.
