Front Seat Cushion Inner Trim Panel Replacement

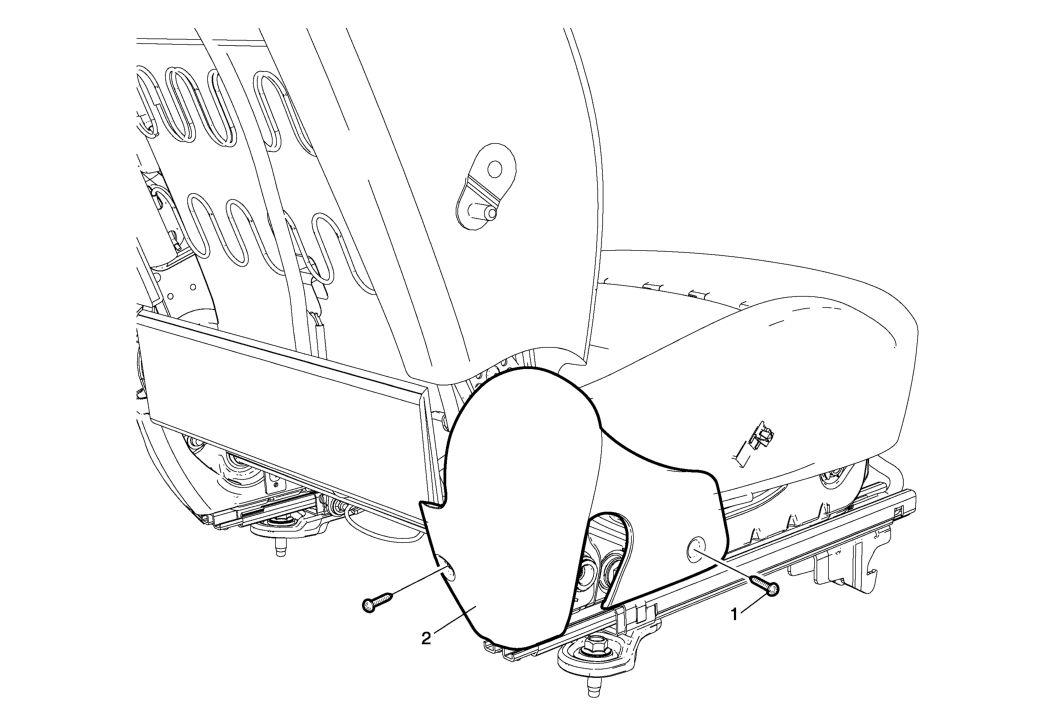

Fig 1: Front Seat Cushion Inner Trim Panel
GM2309341Courtesy of GENERAL MOTORS COMPANY
Front Seat Cushion Inner Trim Panel Replacement

Callout Component Name
1 Front Seat Inner Cover Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


TIP:  Adjust the seat forward or rearward to access the nuts.
Tighten
2.5Y (22 lb in)
2 Front Seat Inner Cover
