Front Seat Outboard Seat Back Airbag Replacement

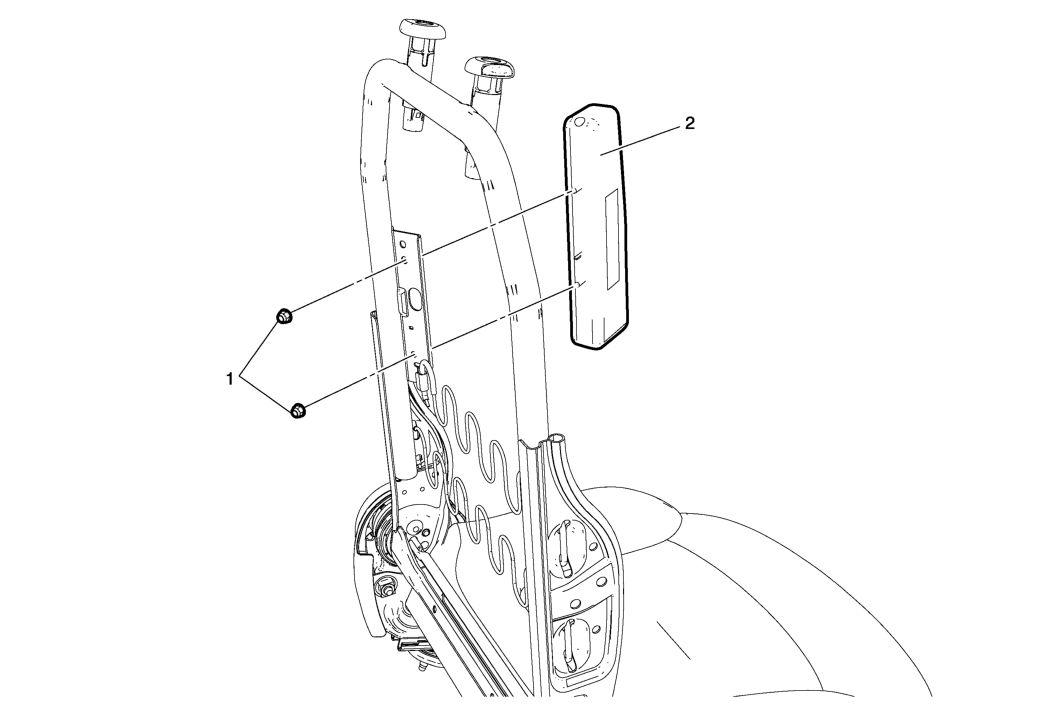

Fig 1: Front Seat Outboard Seat Back Airbag

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary: The seat cushion frame The seat recliner, if equipped The seat adjuster The seat back frame Failure to do so may cause future personal injury. Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front seatback cushion cover. Refer to Driver or Passenger Seat Back Cushion Cover Replacement .
1	Front Seat Side Inflatable Restraint Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (36 lb in)
2	Front Seat Side Inflatable Restraint Module Assembly TIP: Disconnect the electrical connector.

Callout

Component Name

WARNING:

WARNING:

Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

Failure to do so may cause future personal injury.

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front seatback cushion cover. Refer to Driver or Passenger Seat Back Cushion Cover Replacement .

Front Seat Side Inflatable Restraint Module Nut (Qty: 2)

CAUTION:

Tighten
4 N.m (36 lb in)

Front Seat Side Inflatable Restraint Module Assembly
TIP: Disconnect the electrical connector.
