Front Seat Back Pad Replacement

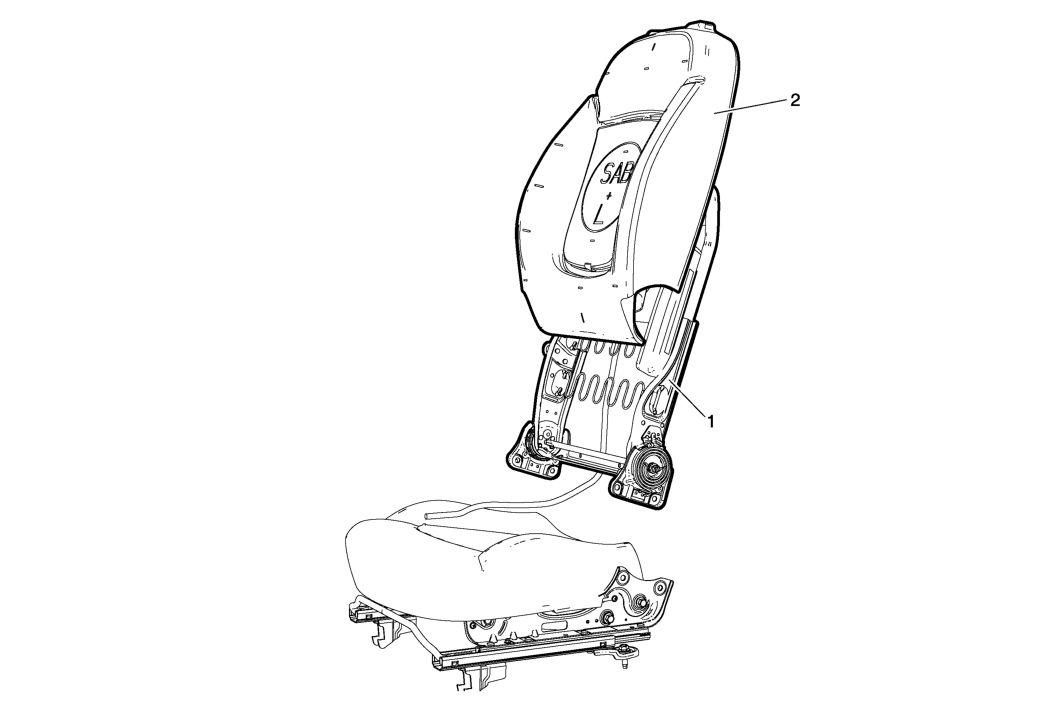

Fig 1: Front Seat Back Pad
GM2309356Courtesy of GENERAL MOTORS COMPANY
Front Seat Back Pad Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the front seat back cushion cover. Refer to Driver or Passenger Seat Back Cushion Cover Replacement .
  2. Remove the front seat back cushion frame. Refer to Driver or Passenger Seat Back Cushion Frame Replacement .
  3. Remove the inflatable restraint side impact module as needed. Refer to Front Seat Outboard Seat Back Airbag Replacement .
1 Front Seat Back Cushion Frame
2 Front Seat Back Cushion Pad

Procedure

  1. Remove the front seat back cushion frame, then remove the cushion pad.
  2. If necessary, remove the front seat back cushion heating mat. Refer to Driver or Passenger Seat Back Cushion Heater Replacement .
