Driver or Passenger Seat Back Cushion Cover Replacement
Driver or Passenger Seat Back Cushion Cover Replacement

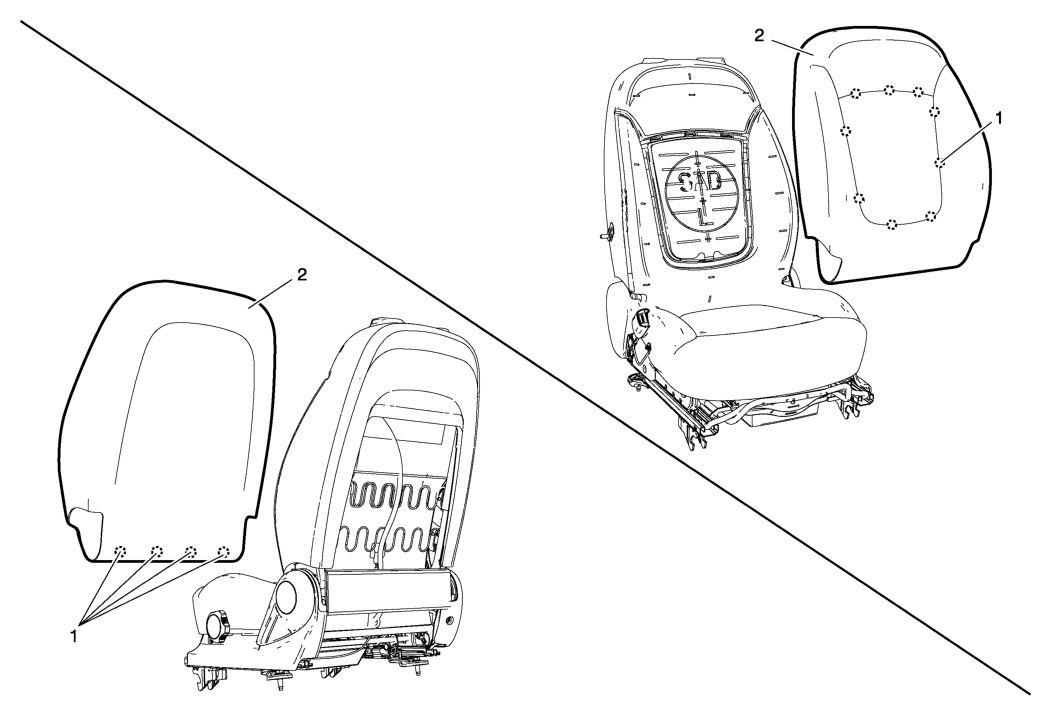

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat armrest. Refer to Front Seat Armrest Replacement . |
|
| 1 | Front Seat Back Cushion Cover Hog Ring (Qty: 13) TIP: Begin at the rear part of the front seat back cushion cover, release the hog rings. |
| 2 | Front Seat Back Cushion Cover |
