Driver or Passenger Seat Back Cushion Heater Replacement

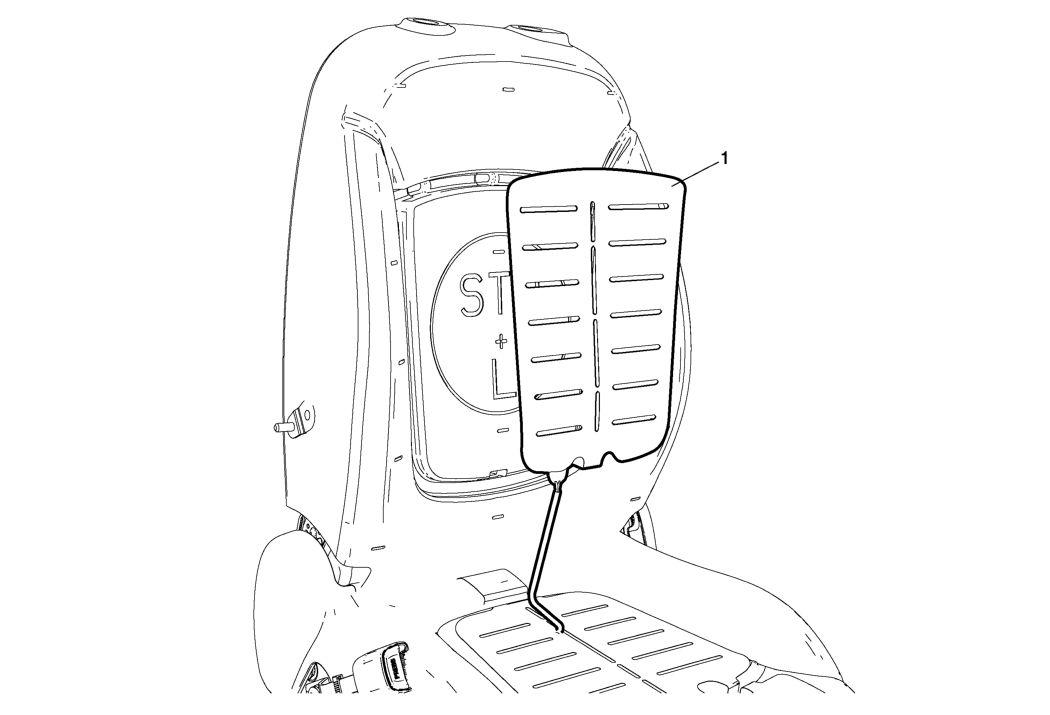

Fig 1: Driver or Passenger Seat Back Cushion Heater Mat

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front seat back cushion cover. Refer to Driver or Passenger Seat Back Cushion Cover Replacement . Disconnect the electric harness connector.
1	Front Seat Back Cushion Heating Mat

Callout

Component Name

Preliminary Procedures

Remove the front seat back cushion cover. Refer to Driver or Passenger Seat Back Cushion Cover Replacement .
Disconnect the electric harness connector.

Front Seat Back Cushion Heating Mat
