Front Seat Cushion Cover And Pad Replacement

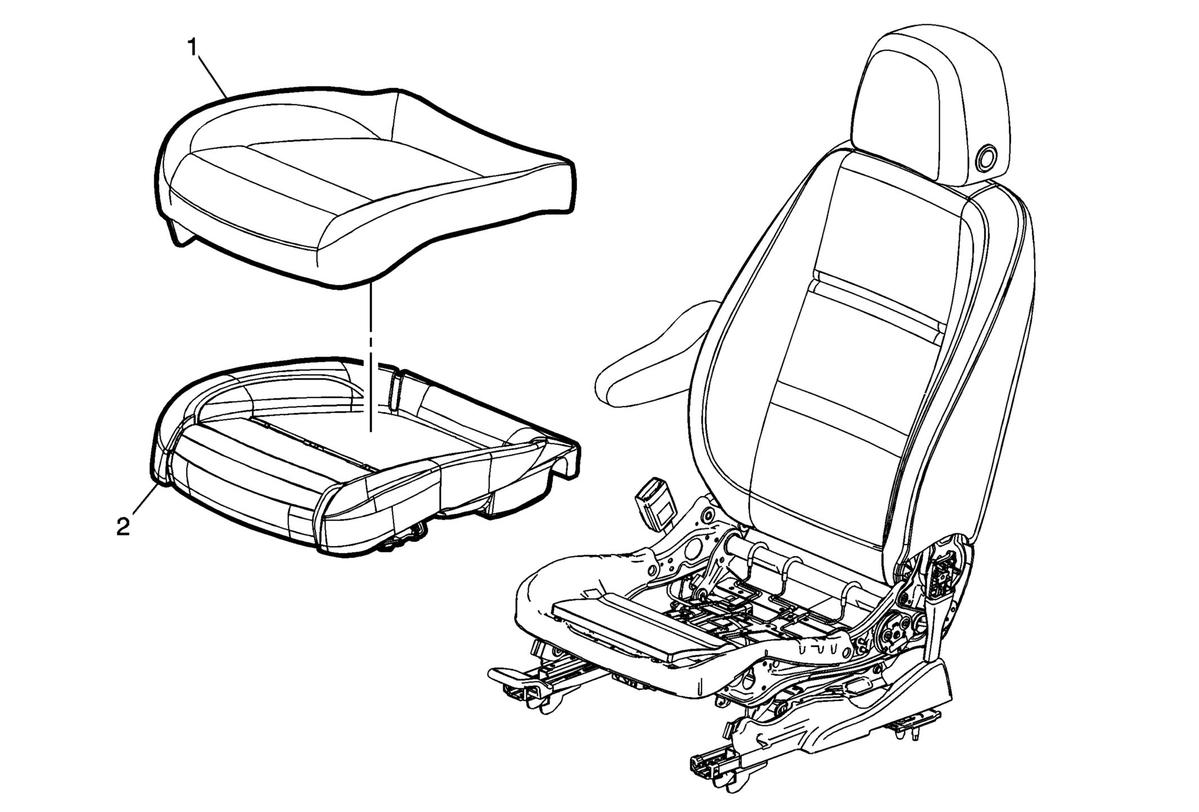

Fig 1: Front Seat Cushion Cover And Pad
GM2775223Courtesy of GENERAL MOTORS COMPANY
Front Seat Cushion Cover and Pad Replacement

Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedure

  1. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
  2. Remove the driver or passenger seat cushion outer finish panel. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Manual)  or Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Power) .
  3. Remove the driver or passenger seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Driver) , Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger) , Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger Outboard with AG5)  or Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger Inboard with AG5)
1 Front Seat Cushion Cover

Procedure

  1. Disengage the J-channel and hog ring retainers from the seat cushion frame.
  2. Disconnect the electrical connectors that attach to the seat cushion, if equipped.
  3. Remove the seat cushion cover and pad from the seat cushion frame as an assembly.
  4. Separate the seat cushion from the seat cushion pad by pulling the cover away from the pad.
2 Front Seat Cushion Pad
NOTE:

The seat belt presence sensor and heat mat, if equipped are integral parts of the seat cushion pad.
