Driver Or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger Inboard With AG5)

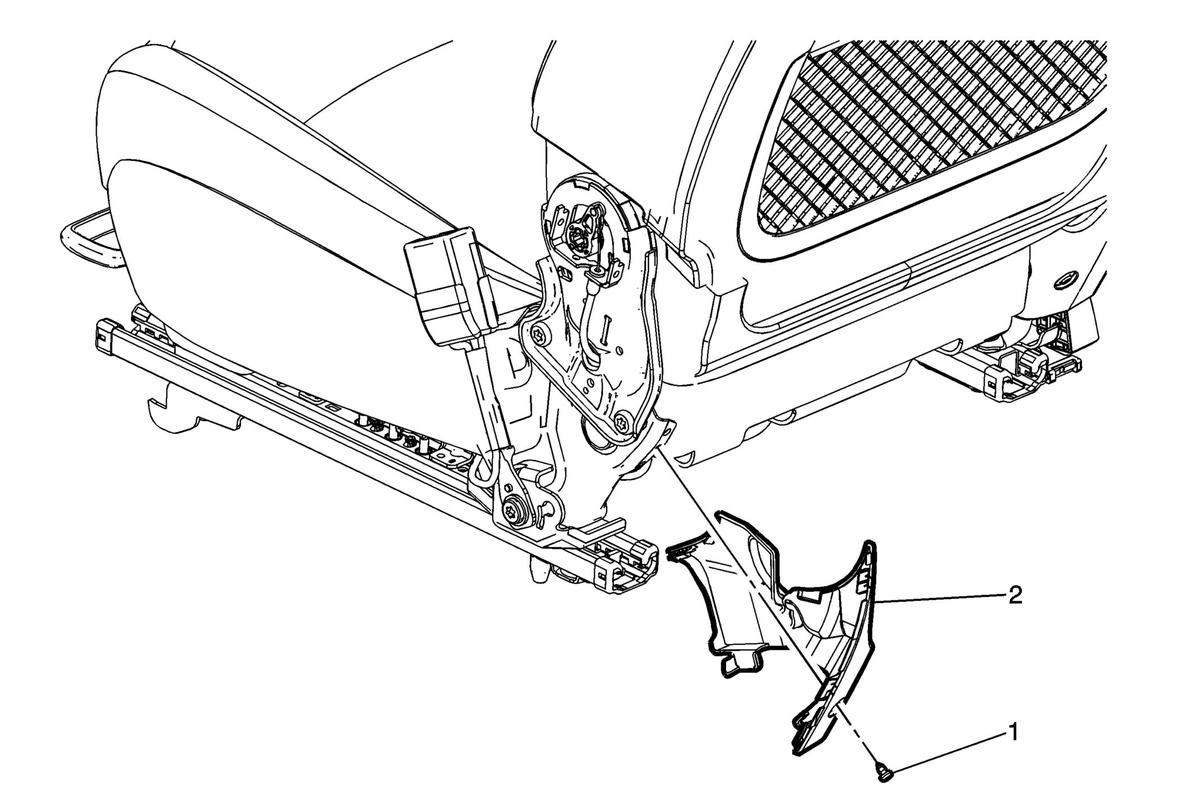

Fig 1: Passenger Seat Inner Recliner Finish Cover (Inboard With AG5)

Courtesy of GENERAL MOTORS COMPANY

Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Passenger Inboard with AG5)

Callout	Component Name
1	Driver or Passenger Seat Inner Recliner Finish Cover Fastener CAUTION: Refer to Fastener Caution . Tighten  8 N.m (71 lb in)
2	Driver or Passenger Seat Inner Recliner Finish Cover Procedure  Use a flat-bladed tool to pry inward on the retaining tabs connecting the recliner finish cover to the seat cushion outer finish panel.
