Driver Or Passenger Seat Removal and Installation

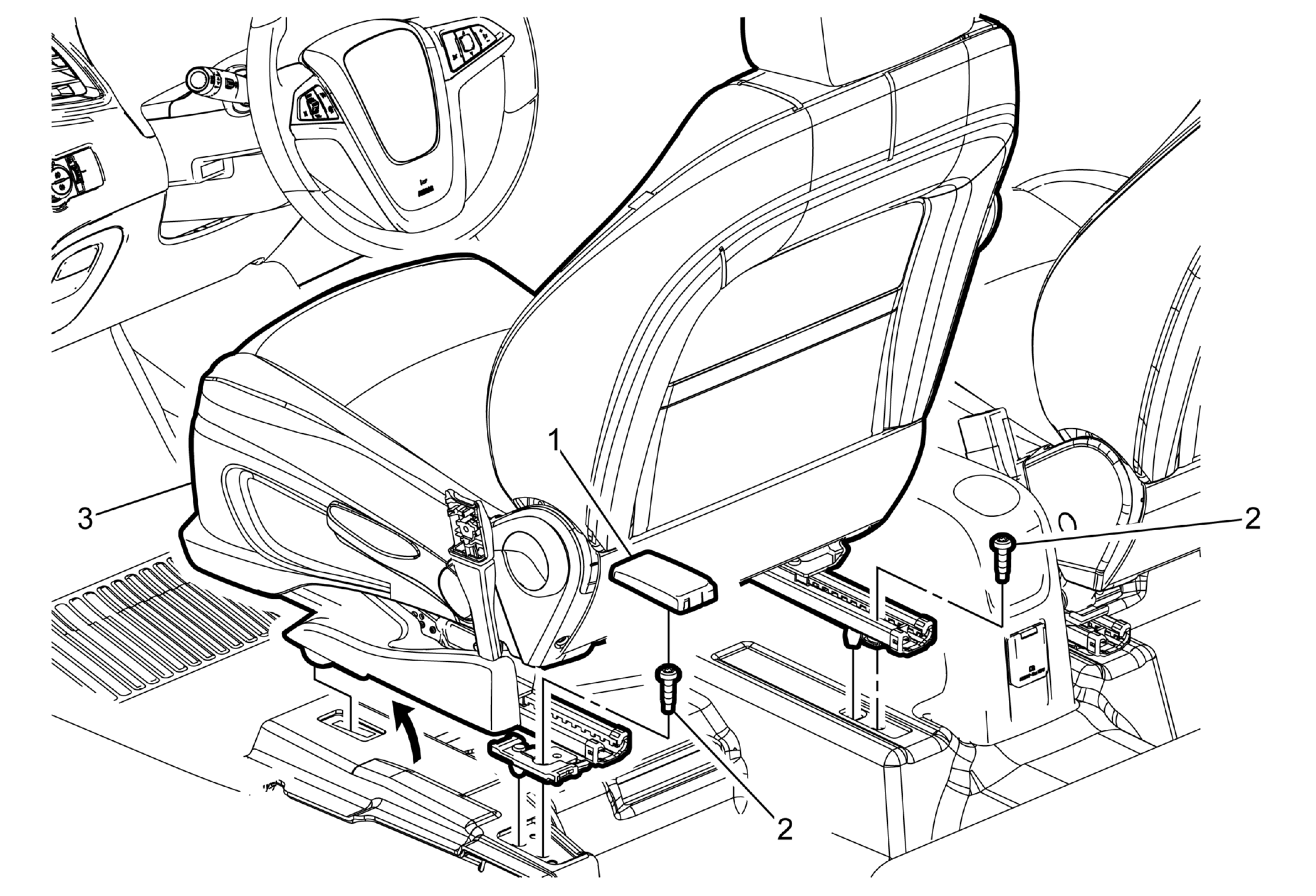

Fig 1: Driver Or Passenger Seat
GM2772751Courtesy of GENERAL MOTORS COMPANY
Driver or Passenger Seat Removal and Installation

Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Disable the front seat belt tensioner fastener by removing the cap, and cover, if equipped. Refer to Front Seat Belt Retractor Replacement (With A69) .
1 Front Seat Riser Finish Cover
Procedure
Remove the front seat riser cover. Refer to Front Seat Riser Finish Cover Replacement .
2 Front Seat Mounting Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Procedure
Adjust the seat to the full forward position to gain access to the rear bolts.
Tighten
40 N.m (30 lb ft)
3 Driver or Passenger Seat Assembly

Procedure

  1. Disconnect the electrical.
  2. With the aid of an assistant remove the front seat, by tilting the seat forward and then lifting and pulling the seat rearwards to disengage the front hooks.
  3. Transfer components as necessary.
