Front Floor Console Replacement

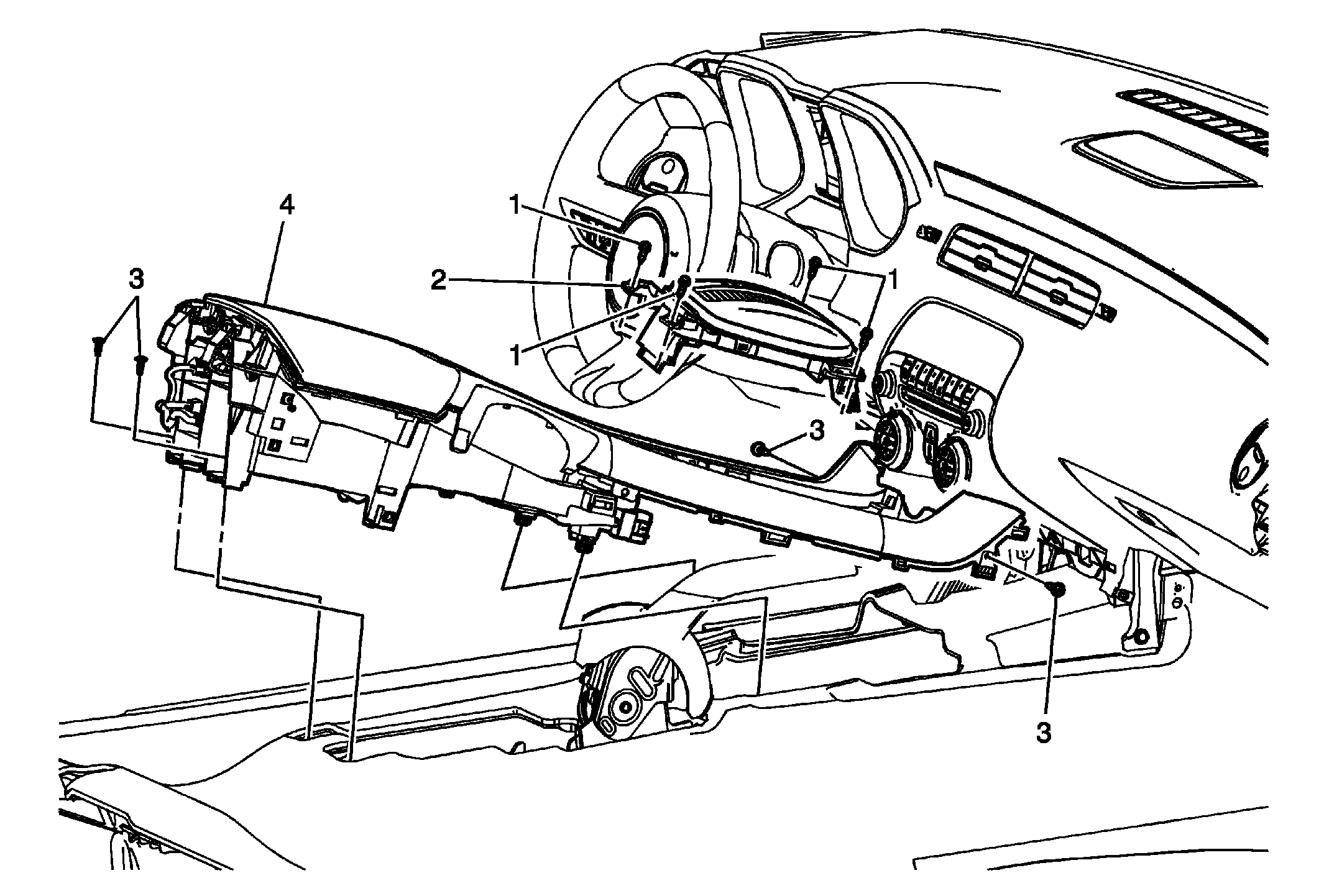

Fig 1: Front Floor Console Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right and left front floor console side cover assemblies. Refer to Front Floor Console Side Cover Replacement - Right Side , and Front Floor Console Side Cover Replacement - Left Side . Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement . Remove the front floor console front cover assembly. Refer to Front Floor Console Front Cover Replacement (With UMQ) , Front Floor Console Front Cover Replacement (Without UMQ) . Remove the transmission control lever knob, if equipped with a automatic transmission. Refer to Transmission Control Lever Knob Replacement . Remove the transmission control lever knob, if equipped with a manual transmission. Refer to Transmission Control Lever Knob Replacement , or Transmission Control Lever Knob Replacement .
1	Automatic Control Transmission Control Lever Housing Bezel Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Automatic Control Transmission Control Lever Housing Bezel Procedure Disconnect the electrical connections.
3	Front Floor Console Fastener (Qty: 4) Tighten 2.5 N.m (22 lb in)
4	Front Floor Console Assembly Procedure Disconnect the electrical connections. When replacing the front floor console assembly, transfer all necessary components.
