Transmission Control Lever Knob Replacement

WARNING: This page is about a different variant/trim than selected.

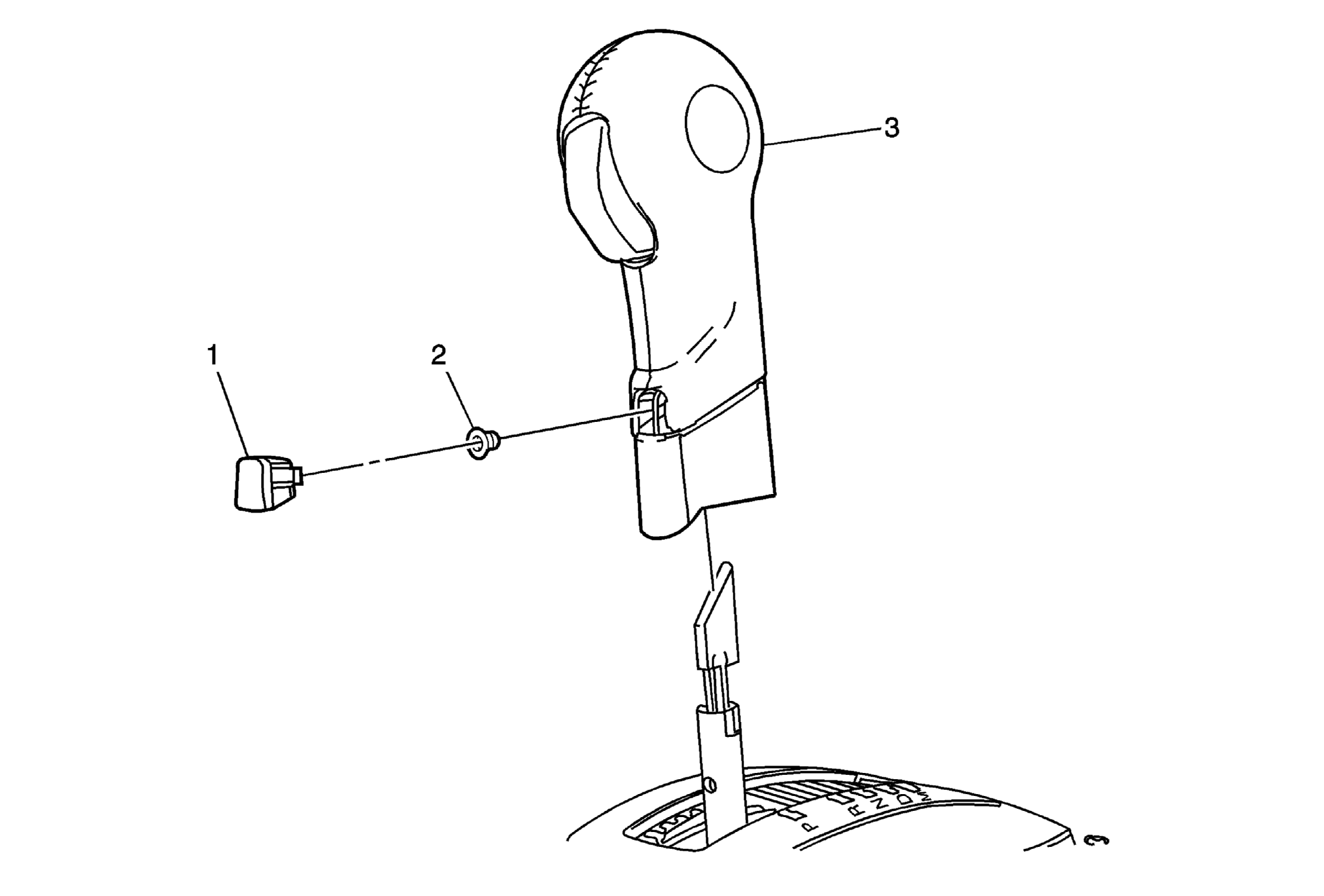

Fig 1: Transmission Control Lever Knob & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transmission Control Lever Knob Cover Procedure Use a flat-bladed plastic trim tool to remove the knob cover.
2	Transmission Control Lever Knob Fastener CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Transmission Control Lever Knob Procedure Pull up on the transmission control level knob to remove. Transfer components as necessary.

Callout

Component Name

Transmission Control Lever Knob Cover
Procedure
Use a flat-bladed plastic trim tool to remove the knob cover.

Transmission Control Lever Knob Fastener

CAUTION:

Tighten
2 N.m (18 lb in)

Transmission Control Lever Knob

Procedure
