Front Floor Console Front Cover Replacement (With UMQ)
Courtesy of GENERAL MOTORS COMPANY Front Floor Console Front Cover Replacement (With UMQ)

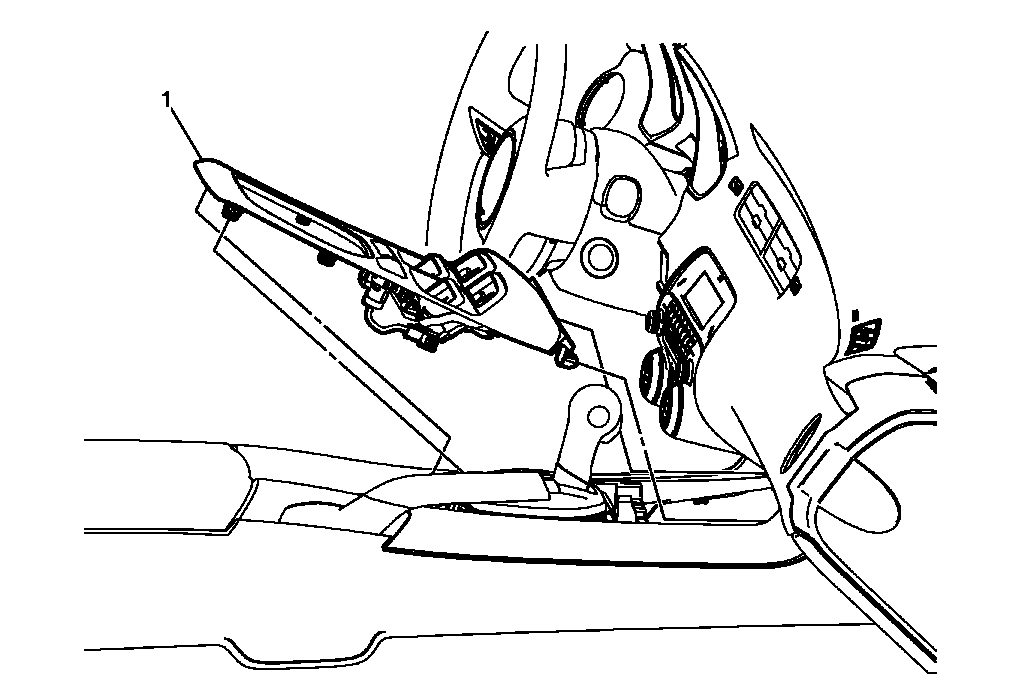

| Callout |
Component Name |
| 1 |
Front Floor Console Front Cover Assembly Procedure
- Apply the parking brake.
- Move the transmission shift assembly to the most rearward position possible.
- Use a flat bladed plastic trim tool and release the retainer tabs securing the front floor console front cover to the console assembly.
- Disconnect the electrical connections.
- When replacing the front floor console front trim cover, transfer all necessary components.
|
