Front Floor Console Rear Cover Replacement
Front Floor Console Rear Cover Replacement

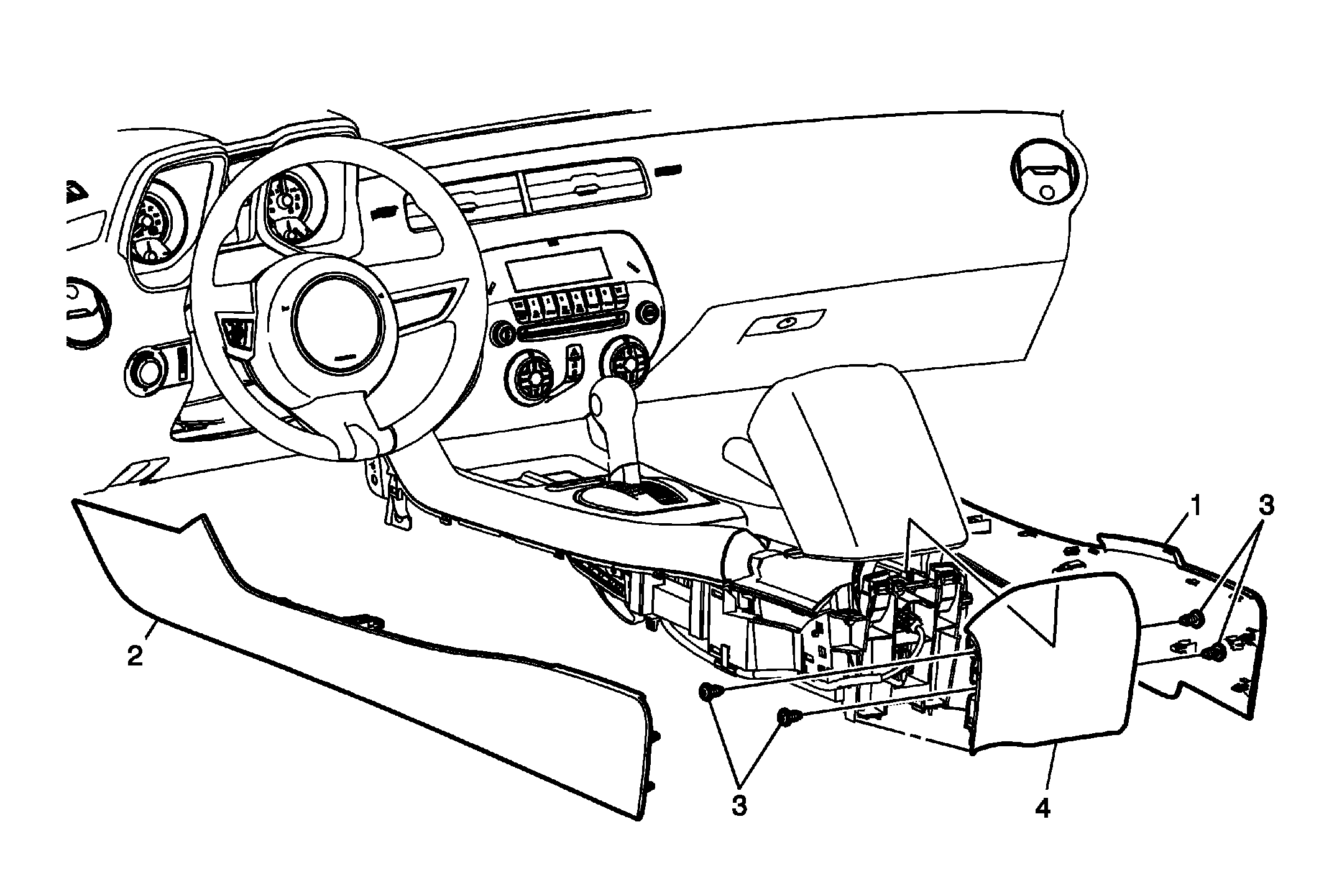

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Side Cover - Right Refer to Front Floor Console Side Cover Replacement - Right Side |
| 2 | Front Floor Console Side Cover - Left Refer to Front Floor Console Side Cover Replacement - Left Side |
| 3 | Front Floor Console Rear Cover Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 4 | Front Floor Console Rear Cover |
