Front Floor Console Front Cover Replacement (Without UMQ)

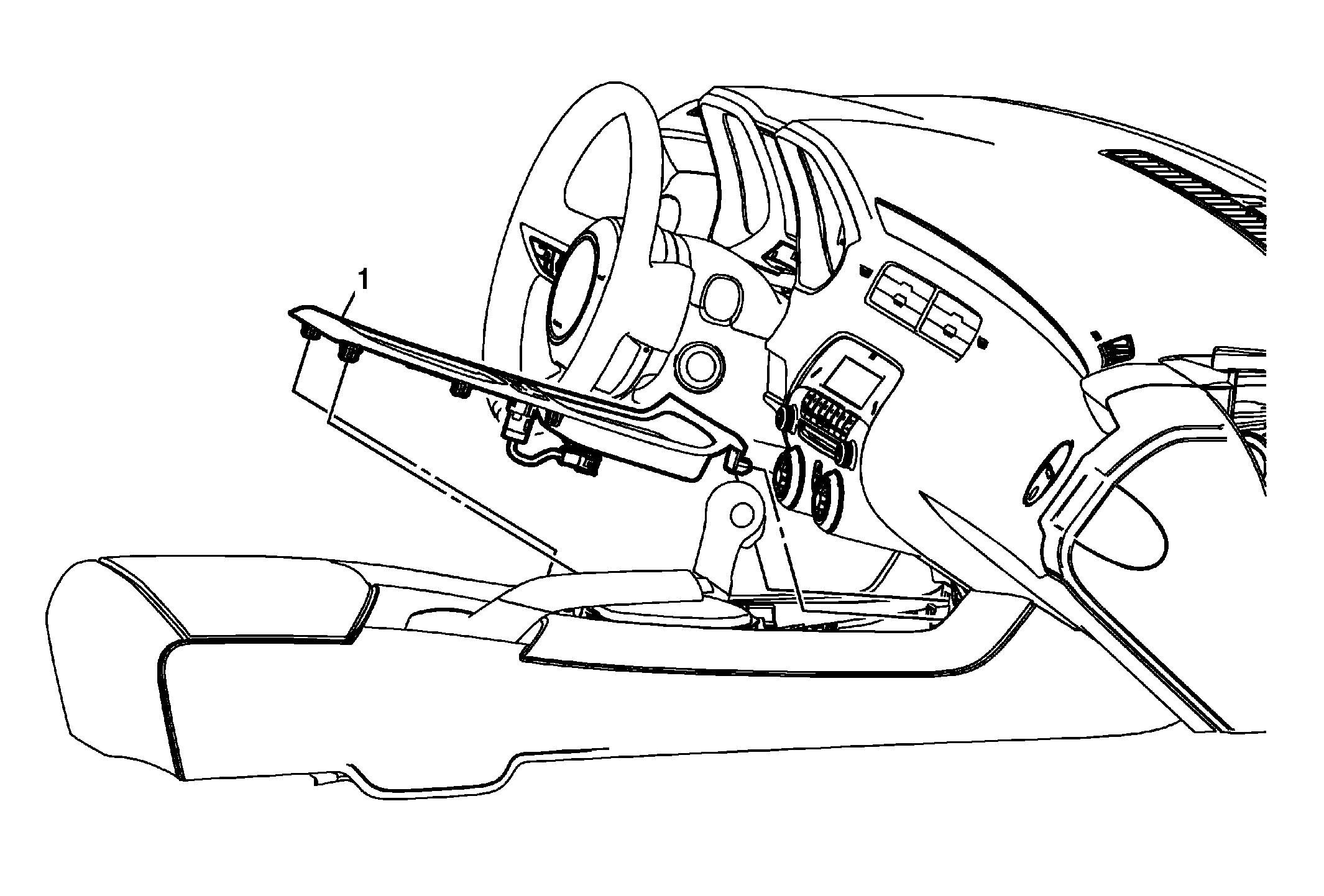

Fig 1: Front Floor Console Front Cover (Without UMQ)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Floor Console Front Cover Assembly Procedure Use a flat bladed plastic trim tool and release the retainer tabs securing the front floor console front cover to the console assembly. Disconnect the electrical connections. When replacing the front floor console front trim cover, transfer all necessary components.

Callout

Component Name

Front Floor Console Front Cover Assembly

Procedure

Use a flat bladed plastic trim tool and release the retainer tabs securing the front floor console front cover to the console assembly.
Disconnect the electrical connections.
When replacing the front floor console front trim cover, transfer all necessary components.
