Front Fog Lamp Replacement (Base/SS)

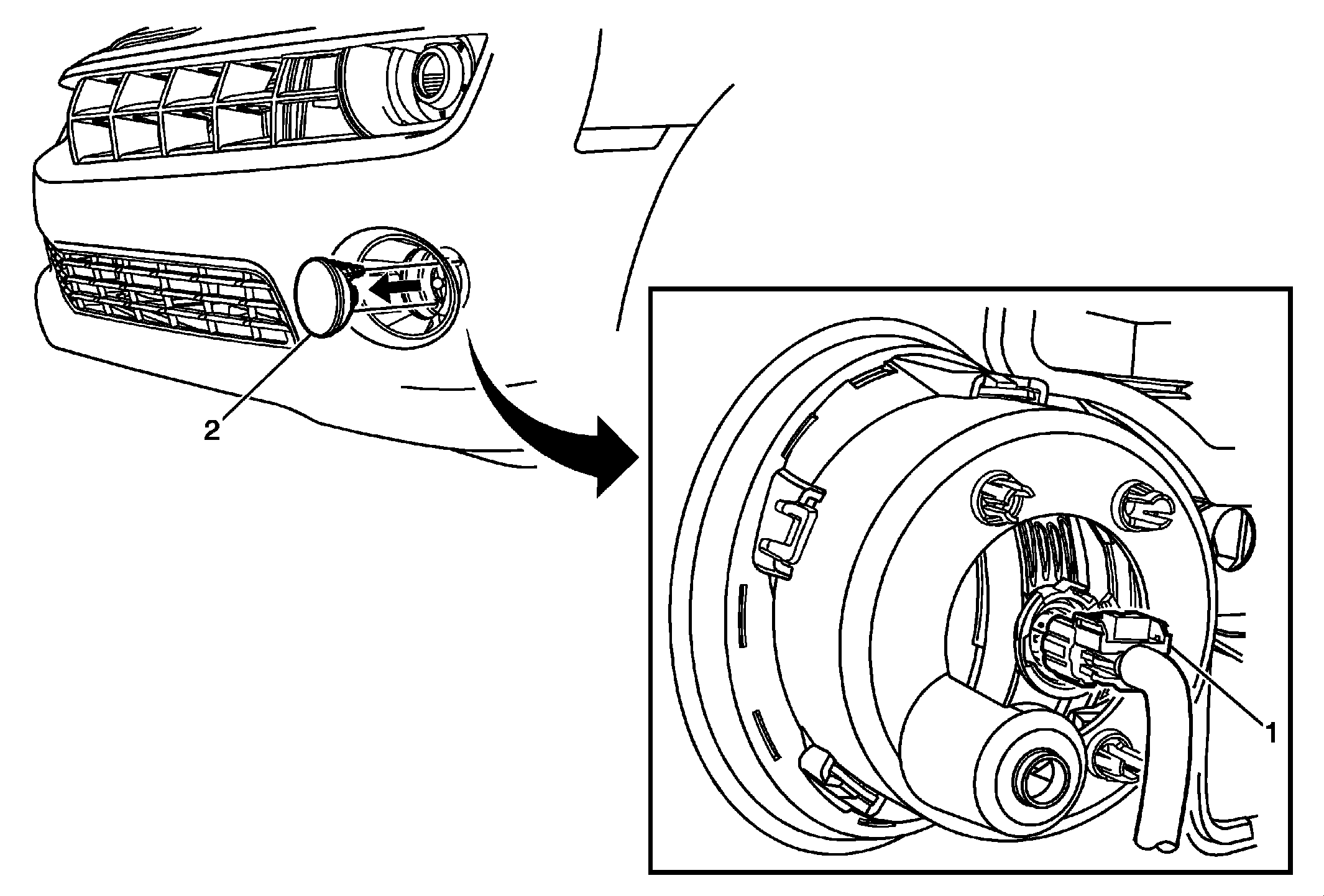

Fig 1: Front Fog Lamp (Base/SS)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front wheel liner. Refer to Front Wheelhouse Liner Replacement (Base, RS, SS) , Front Wheelhouse Liner Replacement (ZL1) . Remove the fog lamp bezel. Refer to Front Fog Lamp Bezel Replacement , Front Fog Lamp Bezel Replacement (ZL1) . Using a blunt tool, push outward and release the fog lamp from the three ball retainers securing the fog lamp to the front bumper fascia.
1	Forward Lamp Harness Electrical Connector WARNING: Refer to Halogen Bulb Warning .
2	Front Fog Lamp Assembly TIP: Reset the ball retainers into the front bumper fascia prior to installing the fog lamp.

Callout

Component Name

Preliminary Procedures

Remove the front wheel liner. Refer to Front Wheelhouse Liner Replacement (Base, RS, SS) , Front Wheelhouse Liner Replacement (ZL1) .
Remove the fog lamp bezel. Refer to Front Fog Lamp Bezel Replacement , Front Fog Lamp Bezel Replacement (ZL1) .
Using a blunt tool, push outward and release the fog lamp from the three ball retainers securing the fog lamp to the front bumper fascia.

Forward Lamp Harness Electrical Connector

WARNING:

Front Fog Lamp Assembly
TIP: Reset the ball retainers into the front bumper fascia prior to installing the fog lamp.
