Front Fog Lamp Bezel Replacement (ZL1)

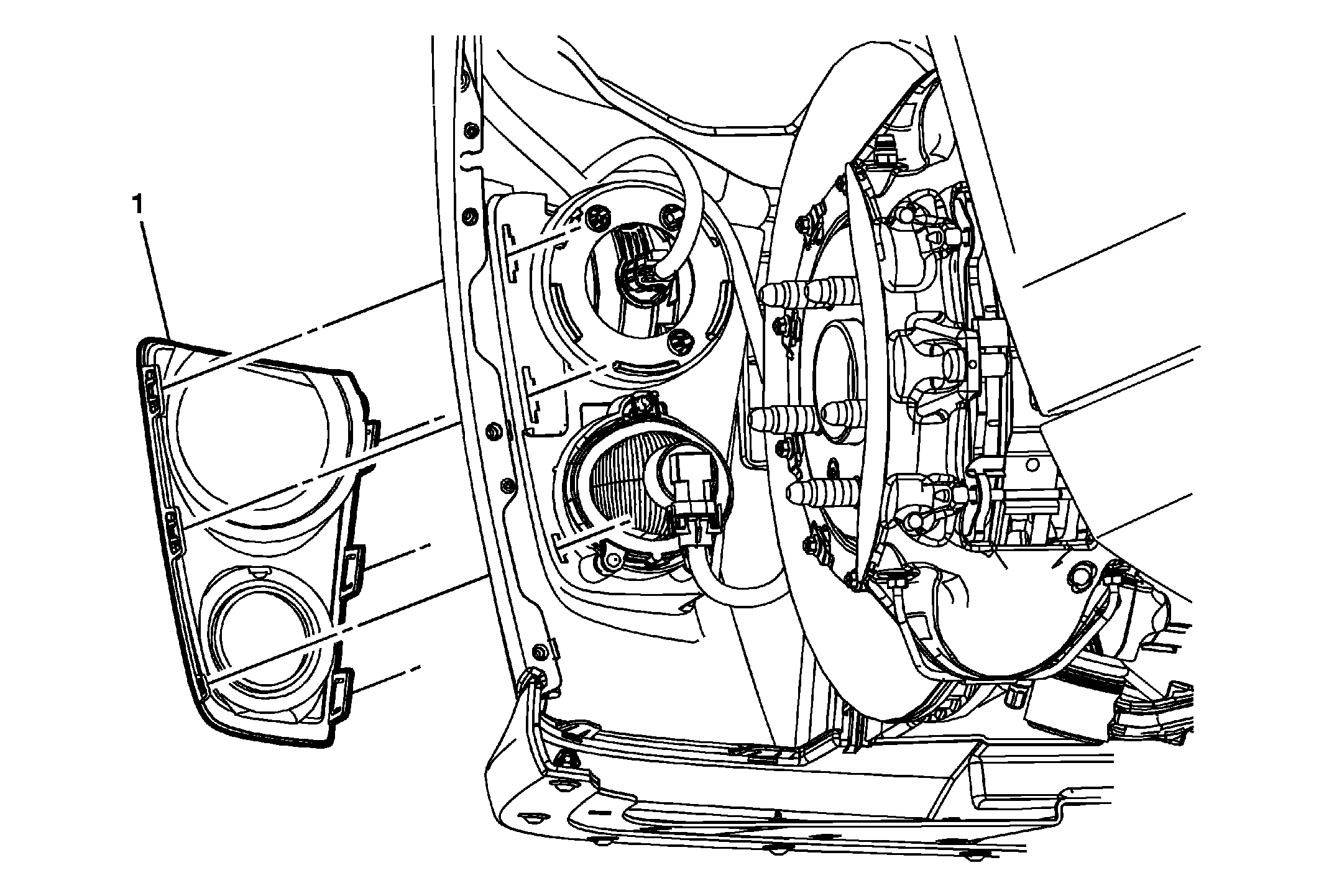

Fig 1: Front Fog Lamp Bezel (ZL1)

GM2736266

Courtesy of GENERAL MOTORS COMPANY

Front Fog Lamp Bezel Replacement (ZL1)

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Base, RS, SS) , Front Wheelhouse Liner Replacement (ZL1) .

1

Front Fog Lamp Bezel

Procedure

Using a flat-bladed tool from backside the bumper fascia, release the tabs securing the front fog lamp bezel to the front bumper fascia.
Push the front fog lamp bezel outward from the front bumper fascia.
