Front Wheelhouse Liner Replacement (Base, RS, SS)
Front Wheelhouse Liner Replacement (Base, RS, SS)

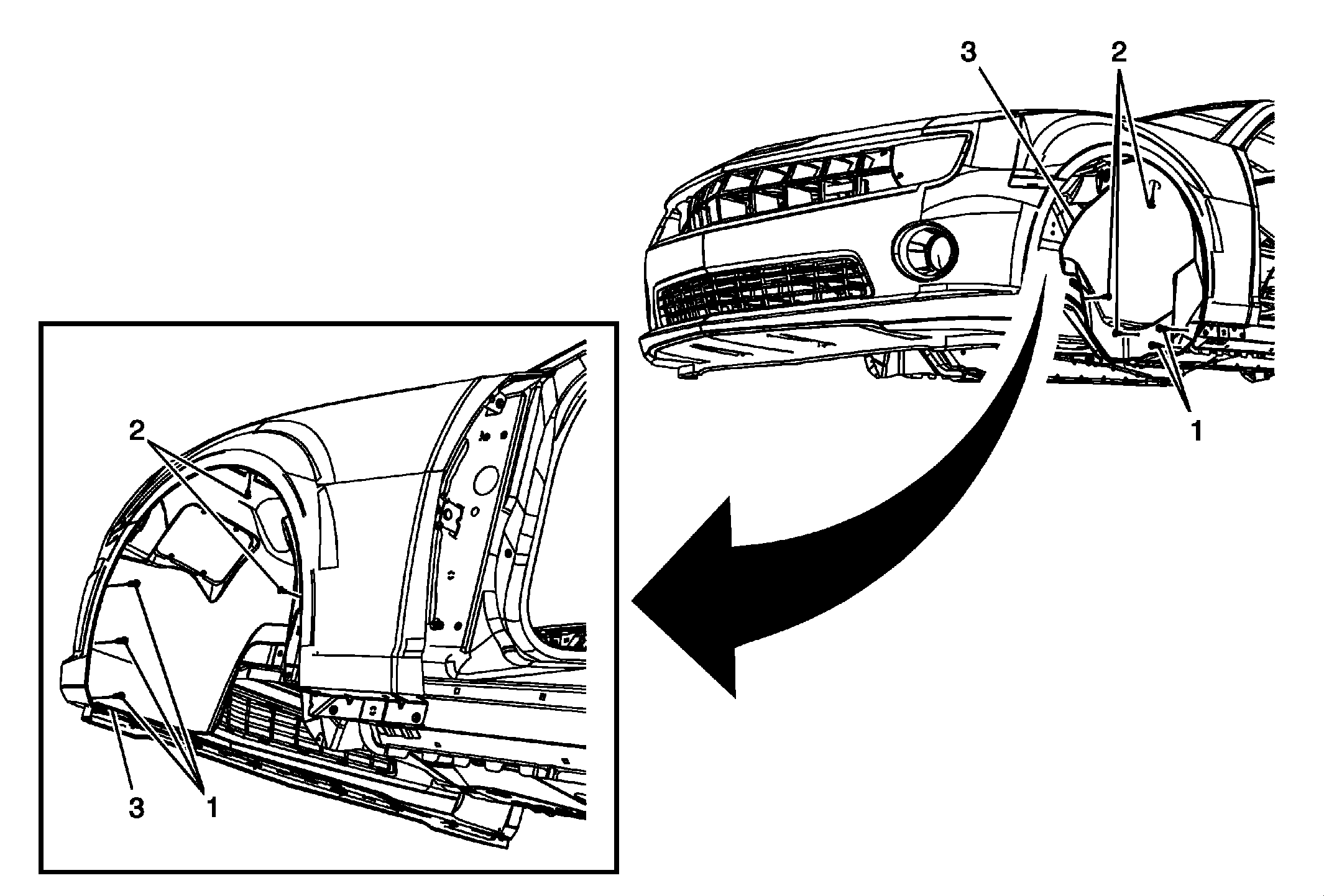

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (w RT2) , Tire and Wheel Removal and Installation (w/o RT2) . |
|
| 1 | Front Wheelhouse Liner Screw (Qty: 5)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Front Wheelhouse Liner Push-In Retainer (Qty: 5) |
| 3 | Front Wheelhouse Liner |
