Front Fog Lamp Bezel Replacement

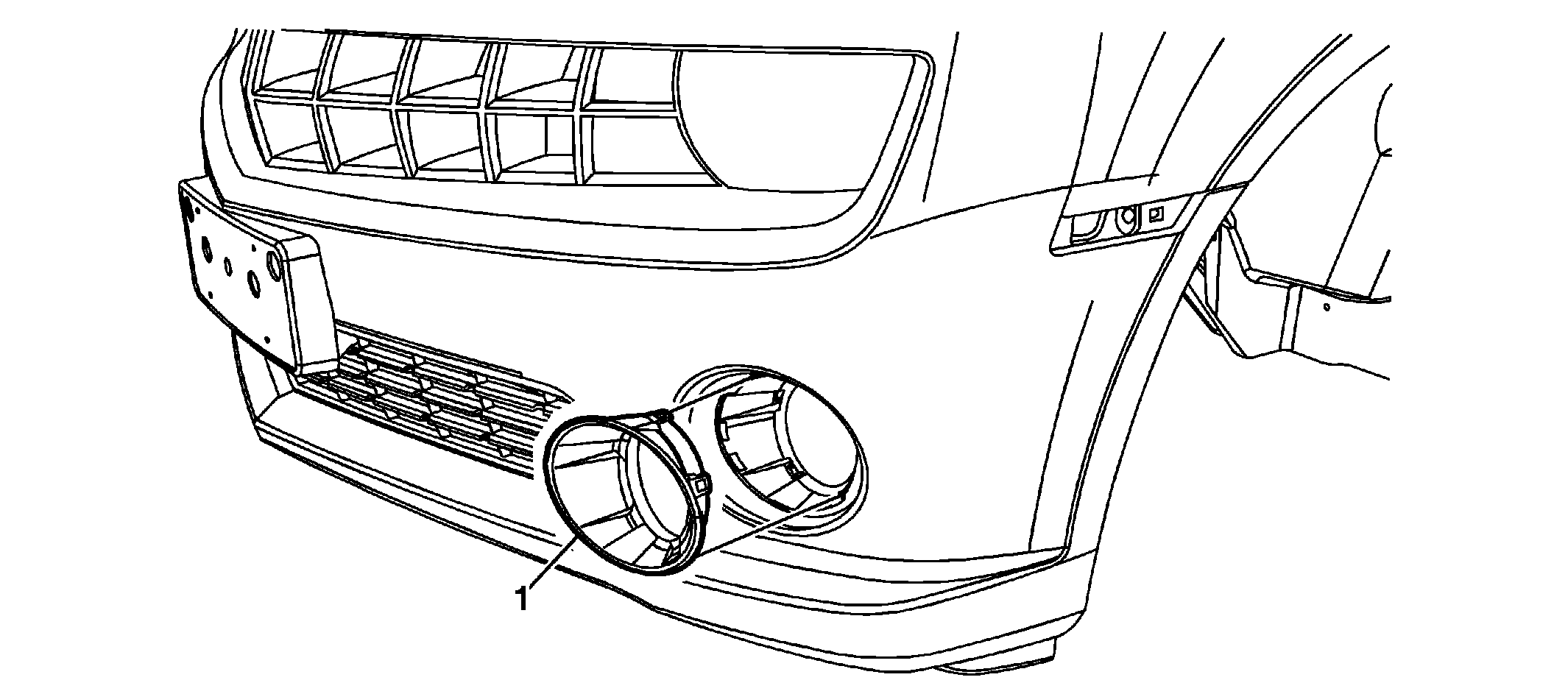

Fig 1: Front Fog Lamp Bezel

GM2183126

Courtesy of GENERAL MOTORS COMPANY

Front Fog Lamp Bezel Replacement

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Base, RS, SS) , Front Wheelhouse Liner Replacement (ZL1) .

1

Front Fog Lamp Bezel

Procedure

Using a flat-bladed tool from inside the bumper fascia, release the tabs securing the front fog lamp bezel to the front bumper fascia.
Push the bezel outward from the fascia.
