Front Wheelhouse Liner Replacement (ZL1)

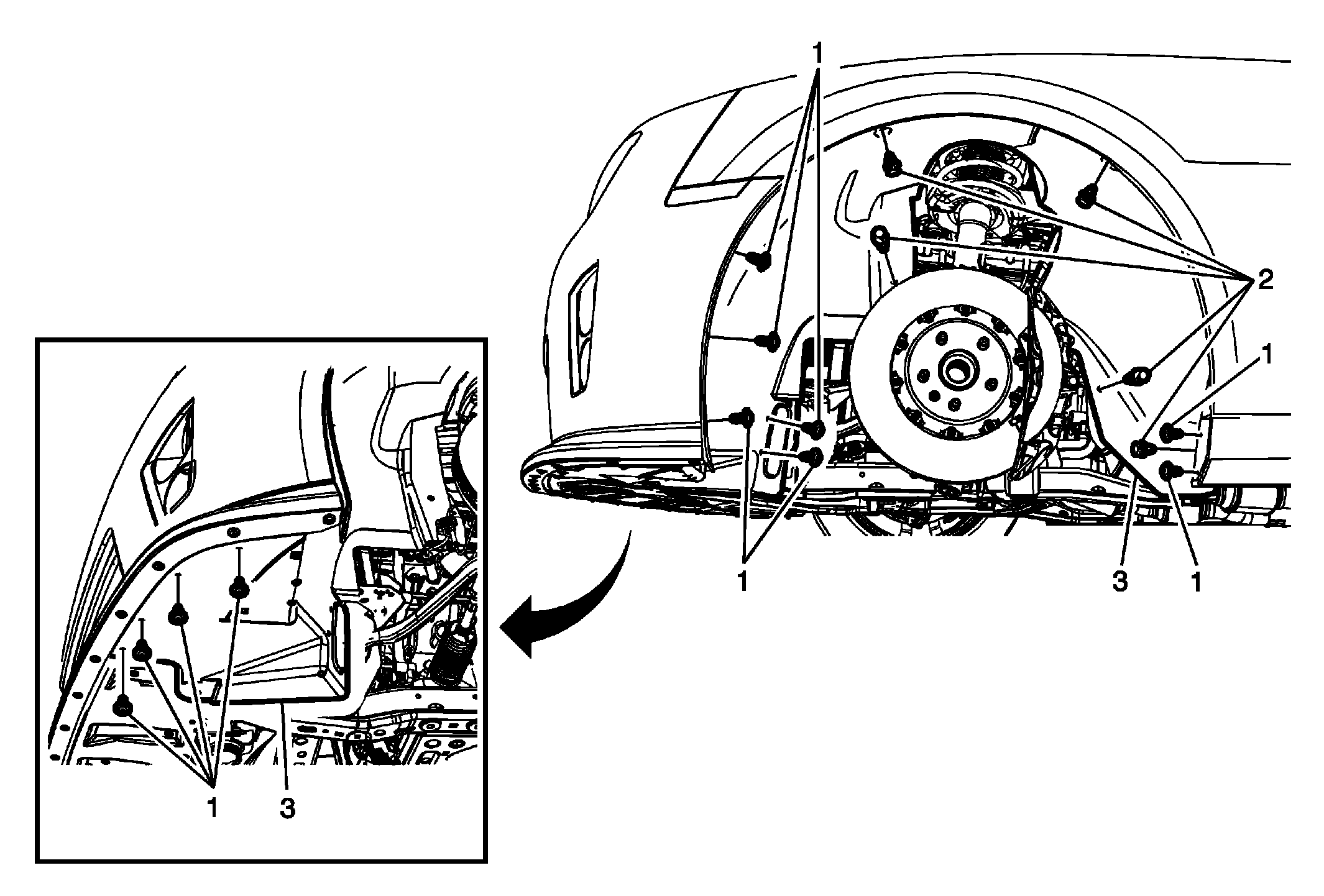

Fig 1: Front Wheelhouse Liner, Retainer And Screws (ZL1)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (w RT2) , Tire and Wheel Removal and Installation (w/o RT2) . Remove the front bumper outer valance. Refer to Front Bumper Outer Valance Panel Replacement .
1	Front Wheelhouse Liner Screw (Qty: 12) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Front Wheelhouse Liner Push-In Retainer (Qty: 5)
3	Front Wheelhouse Liner
