Instrument Panel Center Lower Support Replacement (9C3)

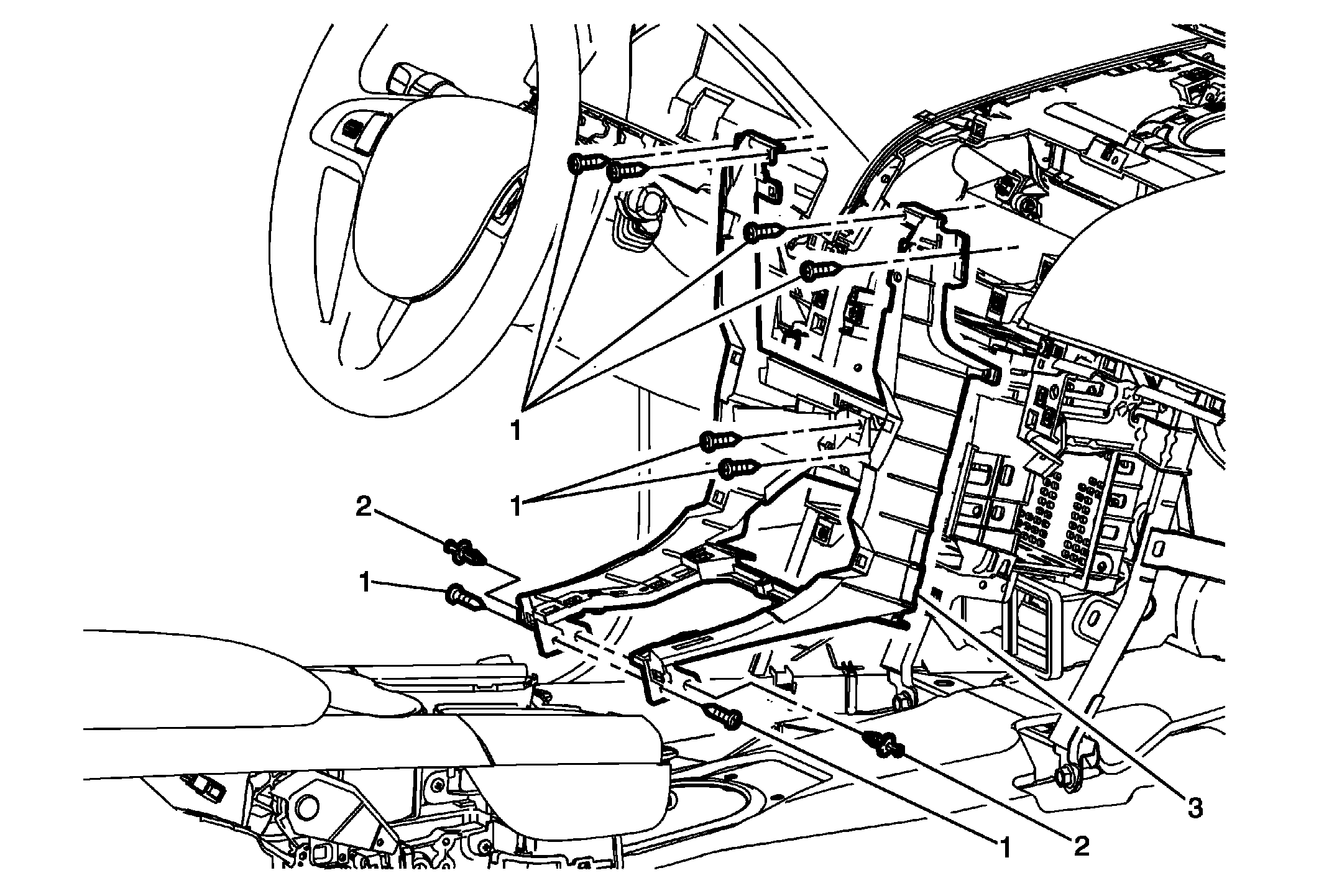

Fig 1: Instrument Panel Center Lower Suppor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the radio assembly. Refer to Radio Replacement . Remove the right and left instrument panel lower extension side trim panels. Refer to Instrument Panel Lower Extension Side Trim Panel Replacement - Left Side , and Instrument Panel Lower Extension Side Trim Panel Replacement - Right Side . Remove the right and left front floor console side covers. Refer to Front Floor Console Side Cover Replacement - Right Side (9C3) , Front Floor Console Side Cover Replacement - Right Side (9C1) , and Front Floor Console Side Cover Replacement - Left Side (9C1) , Front Floor Console Side Cover Replacement - Left Side (9C3) . Remove the instrument panel lower extension compartment assembly. Refer to Instrument Panel Lower Extension Compartment Replacement . Remove the transmission control assembly. Refer to Transmission Control Replacement .
1	Instrument Panel Center Lower Support Fasteners (Qty: 8) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Center Lower Support Push Pin Fastener (Qty: 2)
3	Instrument Panel Center Lower Support
