Front Floor Console Side Cover Replacement - Left Side (9C3)

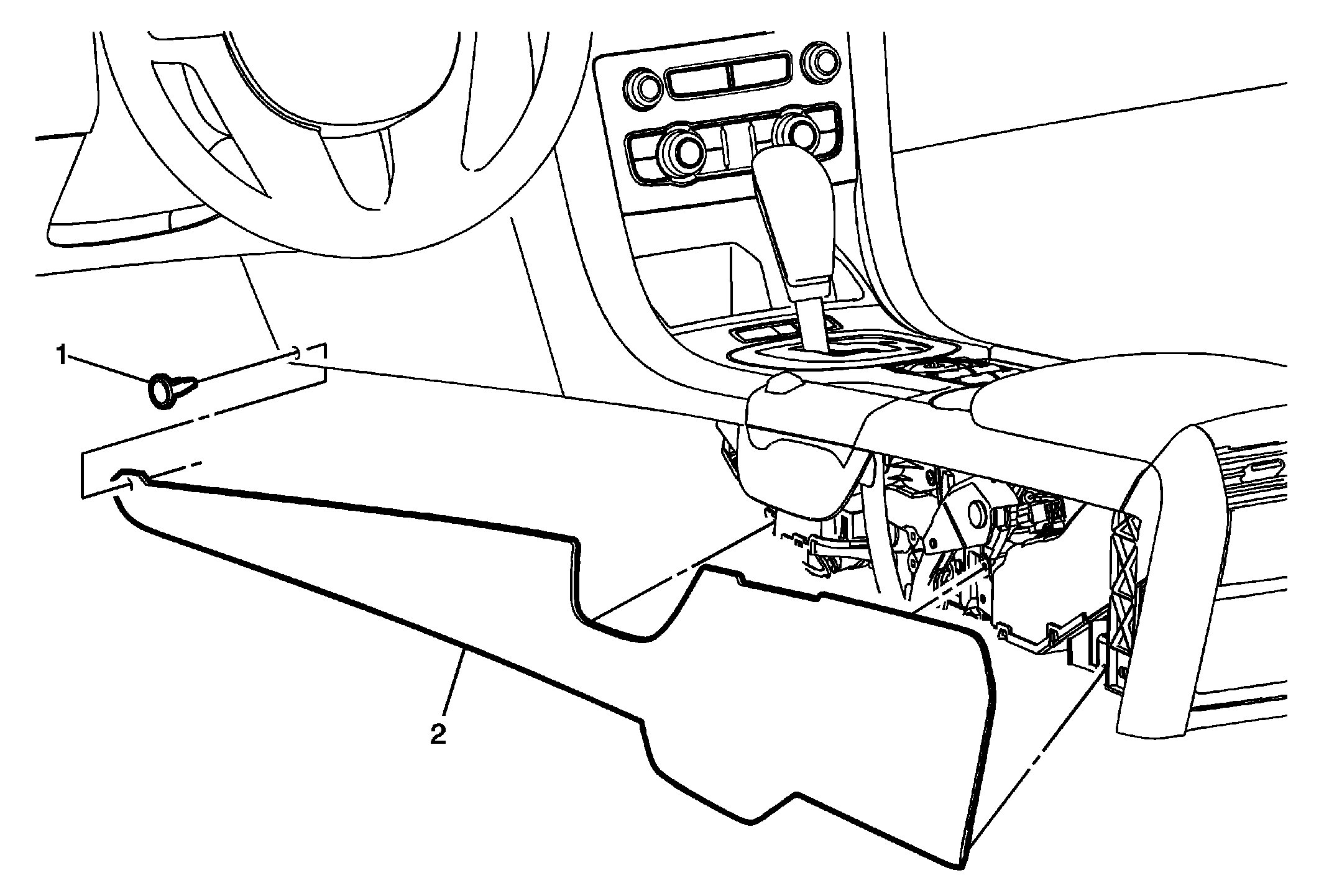

Fig 1: Front Floor Console Side Cover - Left Side (9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Push Pin Fastener
2	Front Floor Console Side Cover Procedure Move the left front seat to its full forward position in order to release the rear retainers. Grasp the side cover and pull outward releasing the retainer clips securing the cover to the console assembly.

Callout

Component Name

Push Pin Fastener

Front Floor Console Side Cover

Procedure

Move the left front seat to its full forward position in order to release the rear retainers.
Grasp the side cover and pull outward releasing the retainer clips securing the cover to the console assembly.
