Front Floor Console Side Cover Replacement - Left Side (9C1)

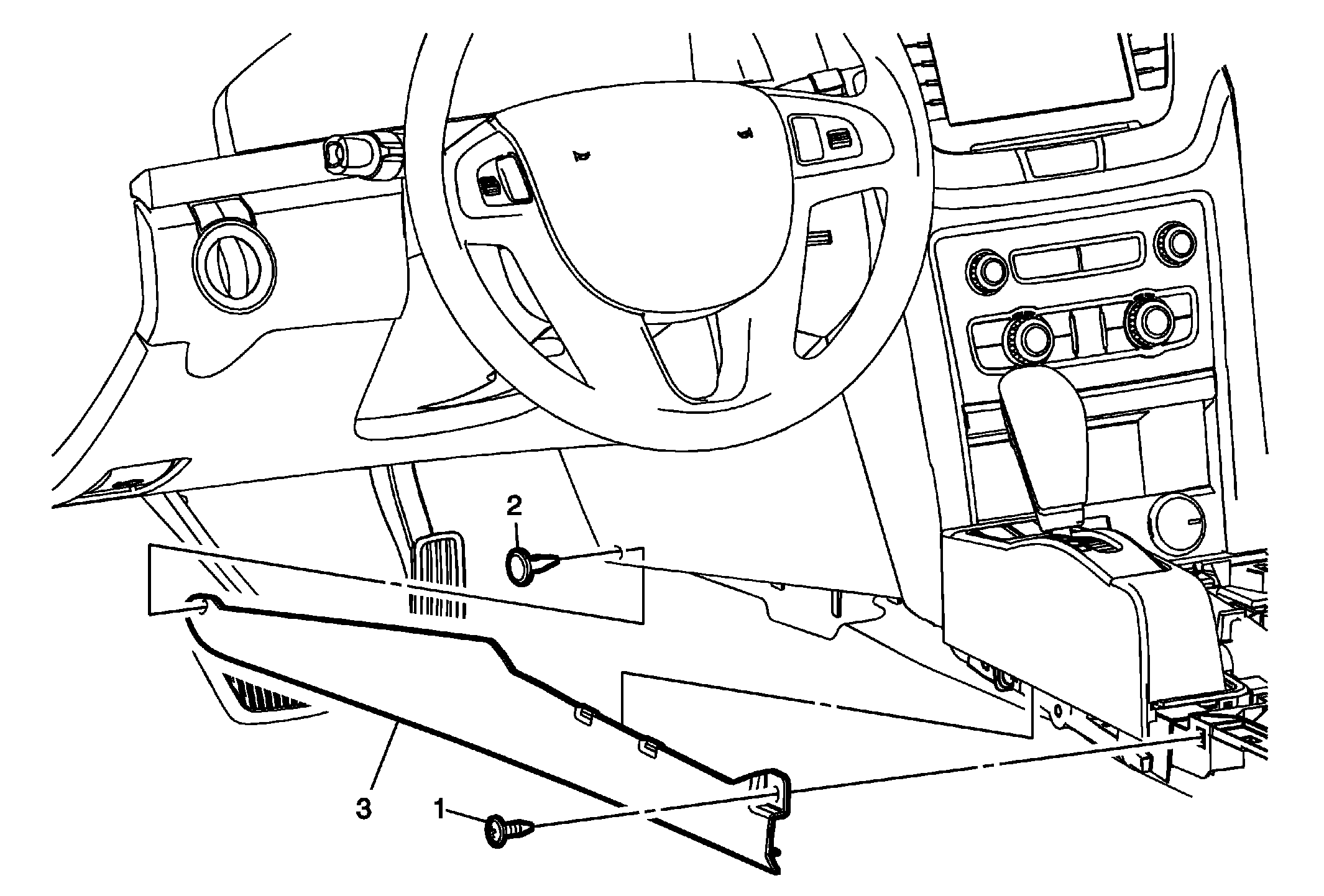

Fig 1: Front Floor Console Side Cover - Left Side (9C1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Floor Console Side Cover Fastener CAUTION: Refer to Fastener Caution .
2	Push Pin Fastener
3	Front Floor Console Side Cover Procedure Grasp the side cover and pull outward releasing the retainer clips securing the cover to the console assembly.
