Instrument Panel Lower Extension Compartment Replacement

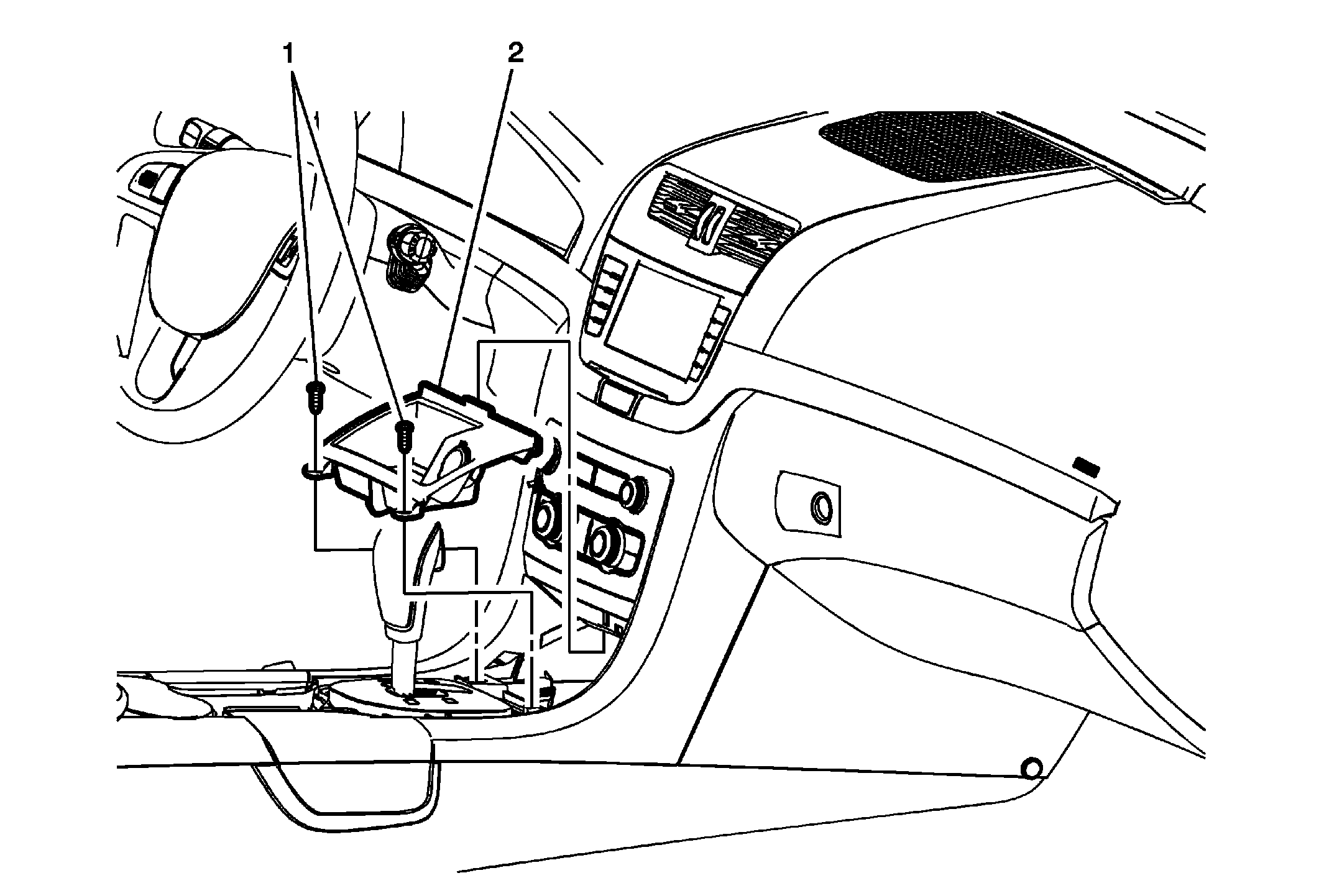

Fig 1: Instrument Panel Lower Extension Compartment
GM2546801Courtesy of GENERAL MOTORS CORP.
Instrument Panel Lower Extension Compartment Replacement

Callout Component Name
Preliminary Procedure
Remove the front floor console front cover. Refer to Console Trim Plate Replacement (9C3) .
1 Instrument Panel Lower Extension Compartment Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Lower Extension Compartment Assembly

Procedures

  1. Disconnect the electrical connections.
  2. Grasps and pull rearward to release the retainers.
  3. When replacing the compartment assembly, transfer all necessary components.
