Instrument Panel Lower Extension Side Trim Panel Replacement - Left Side

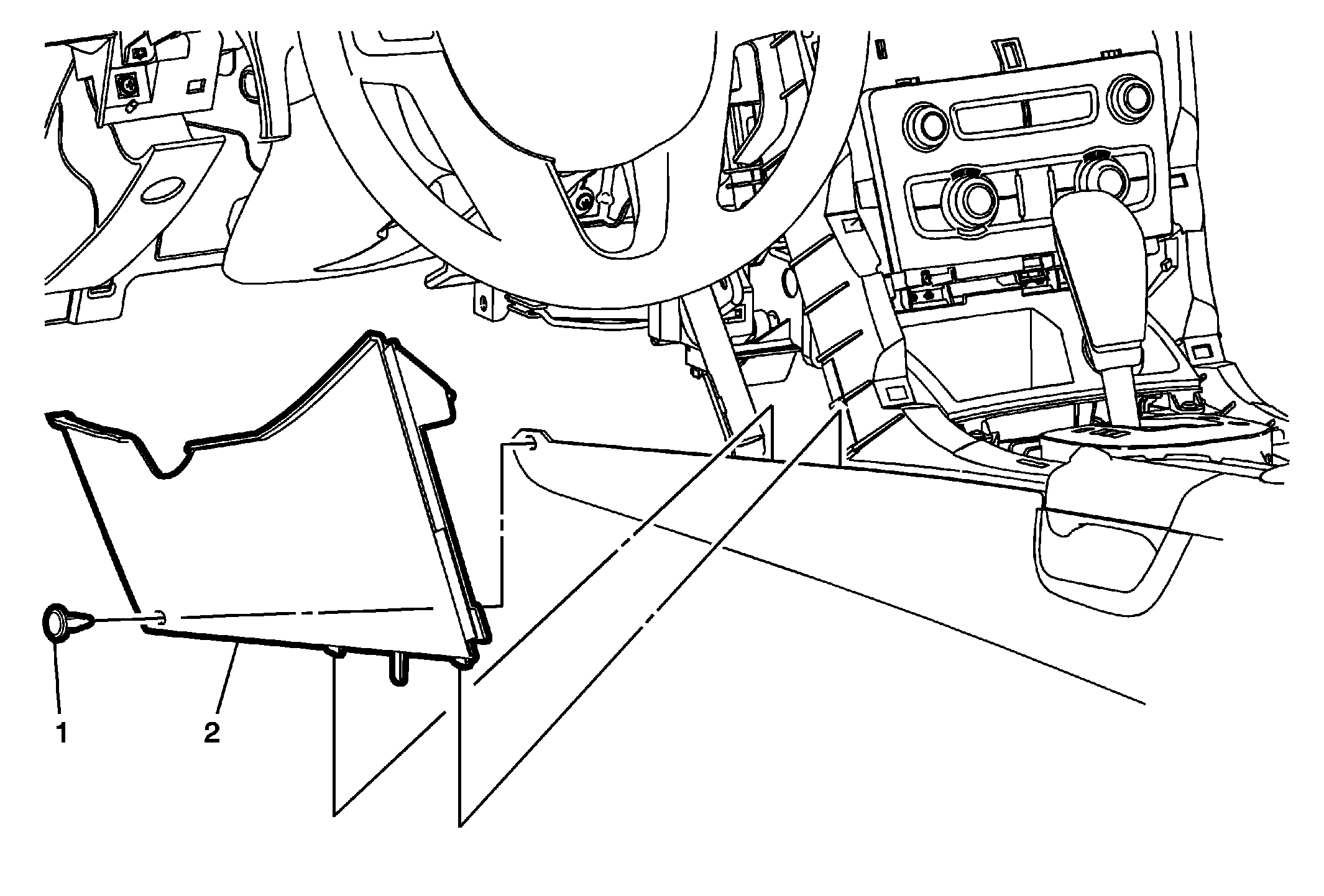

Fig 1: Instrument Panel Lower Extension Side Trim Panel - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (9C3) , Instrument Panel Center Trim Panel Replacement (9C1) . Remove the instrument panel lower trim panel. Refer to Knee Bolster Replacement .
1	Instrument Panel Lower Extension Side Trim Panel Push Pin Fastener
2	Instrument Panel Lower Extension Side Trim Panel Assembly

Callout

Component Name

Preliminary Procedures

Instrument Panel Lower Extension Side Trim Panel Push Pin Fastener

Instrument Panel Lower Extension Side Trim Panel Assembly
