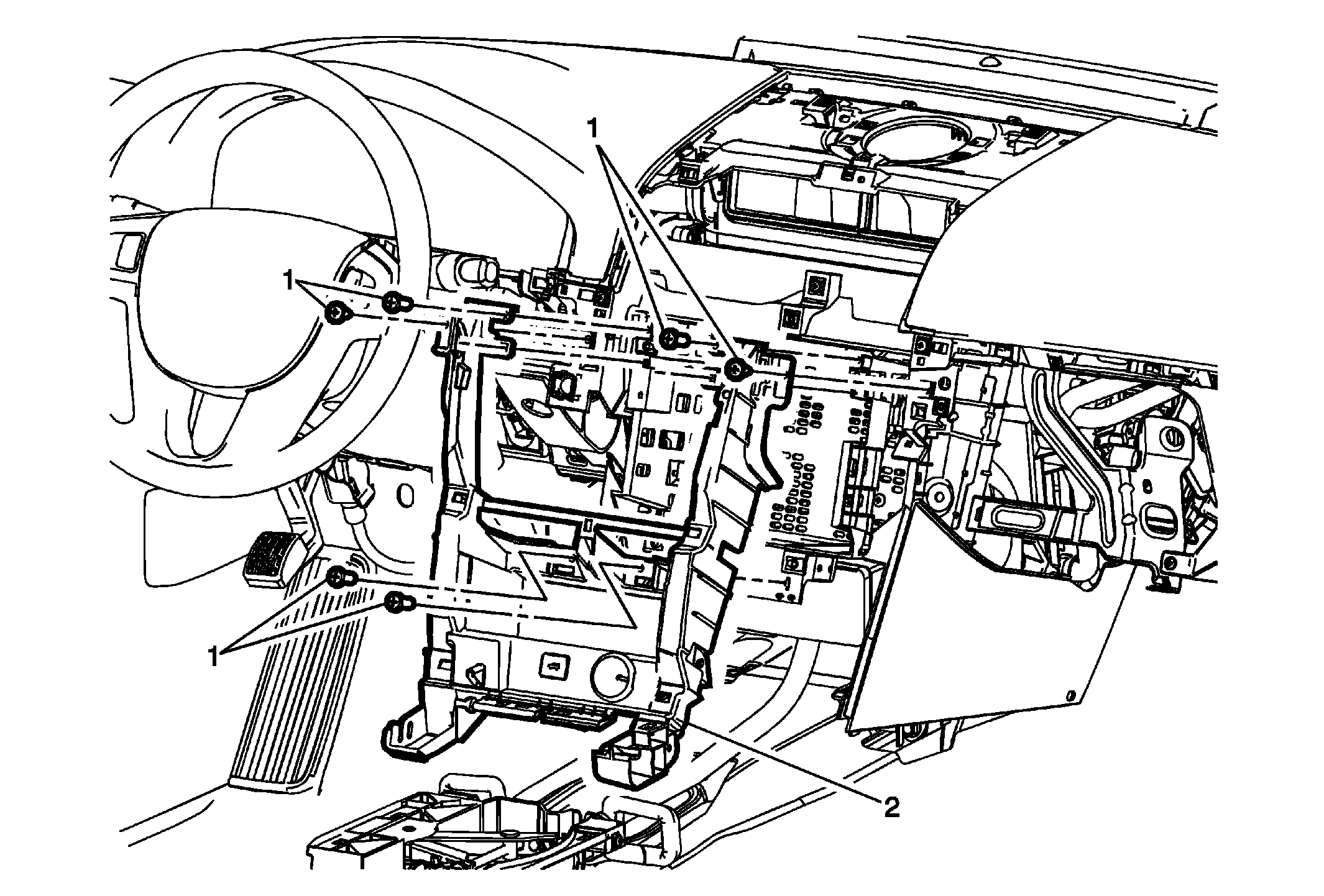

Instrument Panel Center Lower Support Replacement (9C1)

Preliminary Procedures

1. Remove the radio assembly. Refer to Radio Replacement .
2. Remove the knee bolster assembly. Refer to Knee Bolster Replacement .
3. Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement .
4. Remove the right and left front floor console side covers. Refer to Front Floor Console Side Cover Replacement - Right Side (9C3) , Front Floor Console Side Cover Replacement - Right Side (9C1) , and Front Floor Console Side Cover Replacement - Left Side (9C1) , Front Floor Console Side Cover Replacement - Left Side (9C3) .
5. Remove the front floor console front cover. Refer to Front Floor Console Front Cover Replacement (9C1) .
6. Remove the transmission control assembly. Refer to Transmission Control Replacement .
