Instrument Panel Compartment Replacement

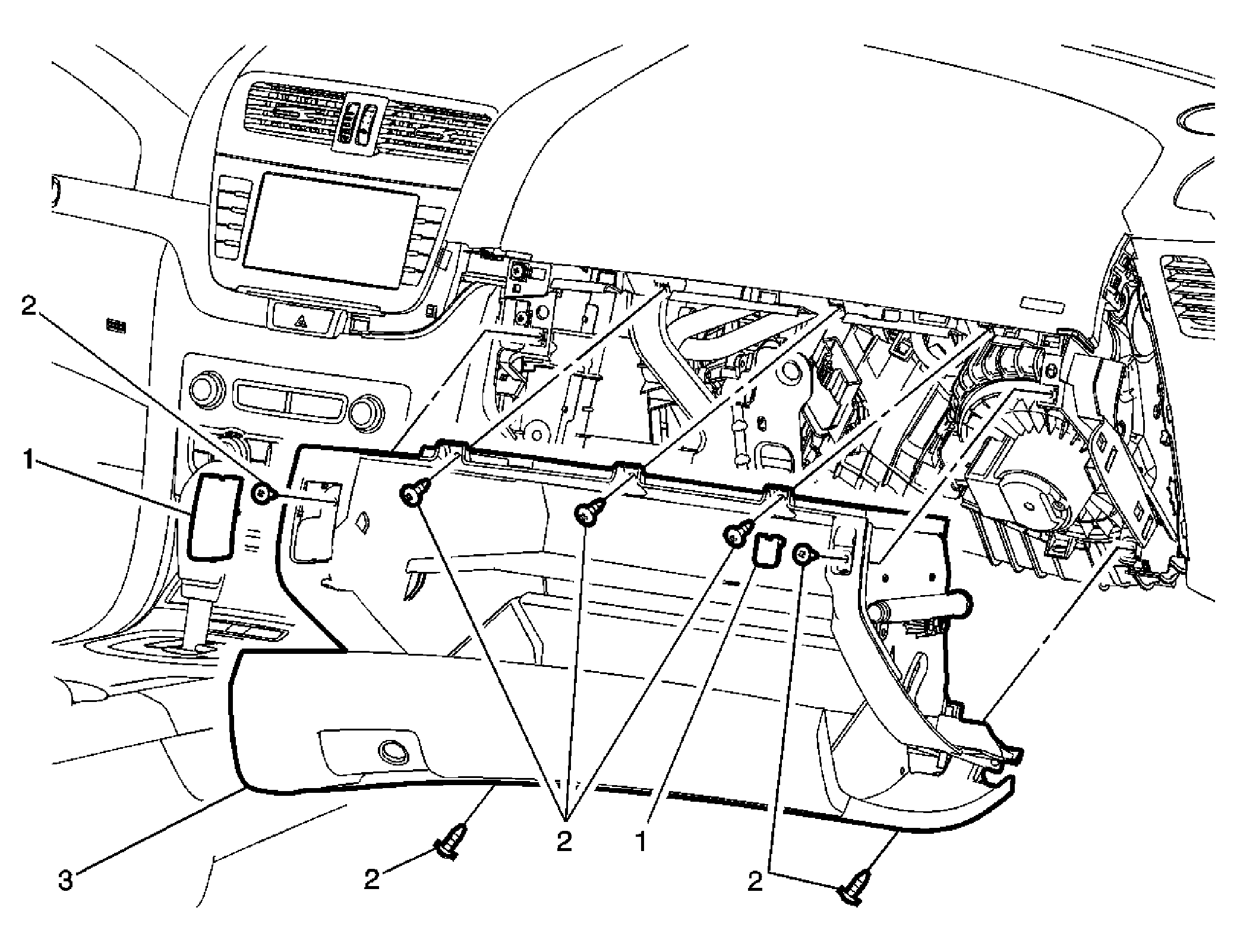

Fig 1: Instrument Panel Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right instrument panel trim plate applique. Refer to Instrument Panel Trim Plate Applique Replacement . Open the instrument panel compartment door to its full open position.
1	Instrument Panel Compartment Fastener Cover (Qty: 2) Procedure Use a flat bladed plastic trim tool in order to remove the fastener covers from the compartment assembly.
2	Instrument Panel Compartment Fastener (Qty: 7) CAUTION: Refer to Fastener Caution .
3	Instrument Panel Compartment Assembly Procedures Disconnect the electrical connections, if applicable. When replacing the instrument compartment assembly, transfer all necessary components.
