Front Floor Console Front Cover Replacement (9C1)
Courtesy of GENERAL MOTORS CORP. Front Floor Console Front Cover Replacement (9C1)

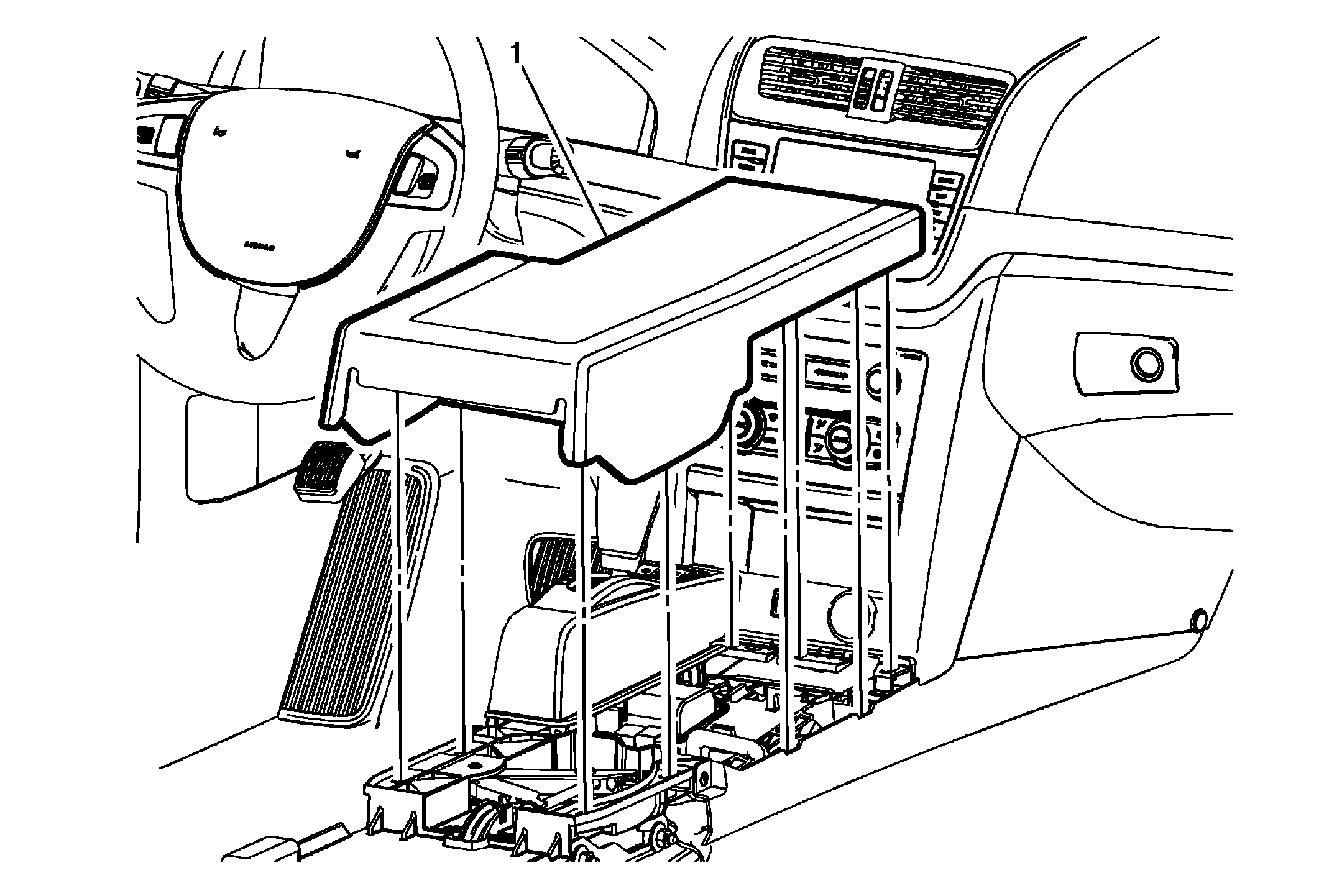

| Callout |
Component Name |
| 1 |
Front Floor Console Front Cover Assembly
Procedure
Grasp the front floor console front cover and pull upward disengaging the the retainer clips securing the cover to the shifter assembly. |
