Instrument Panel Tie Bar Replacement

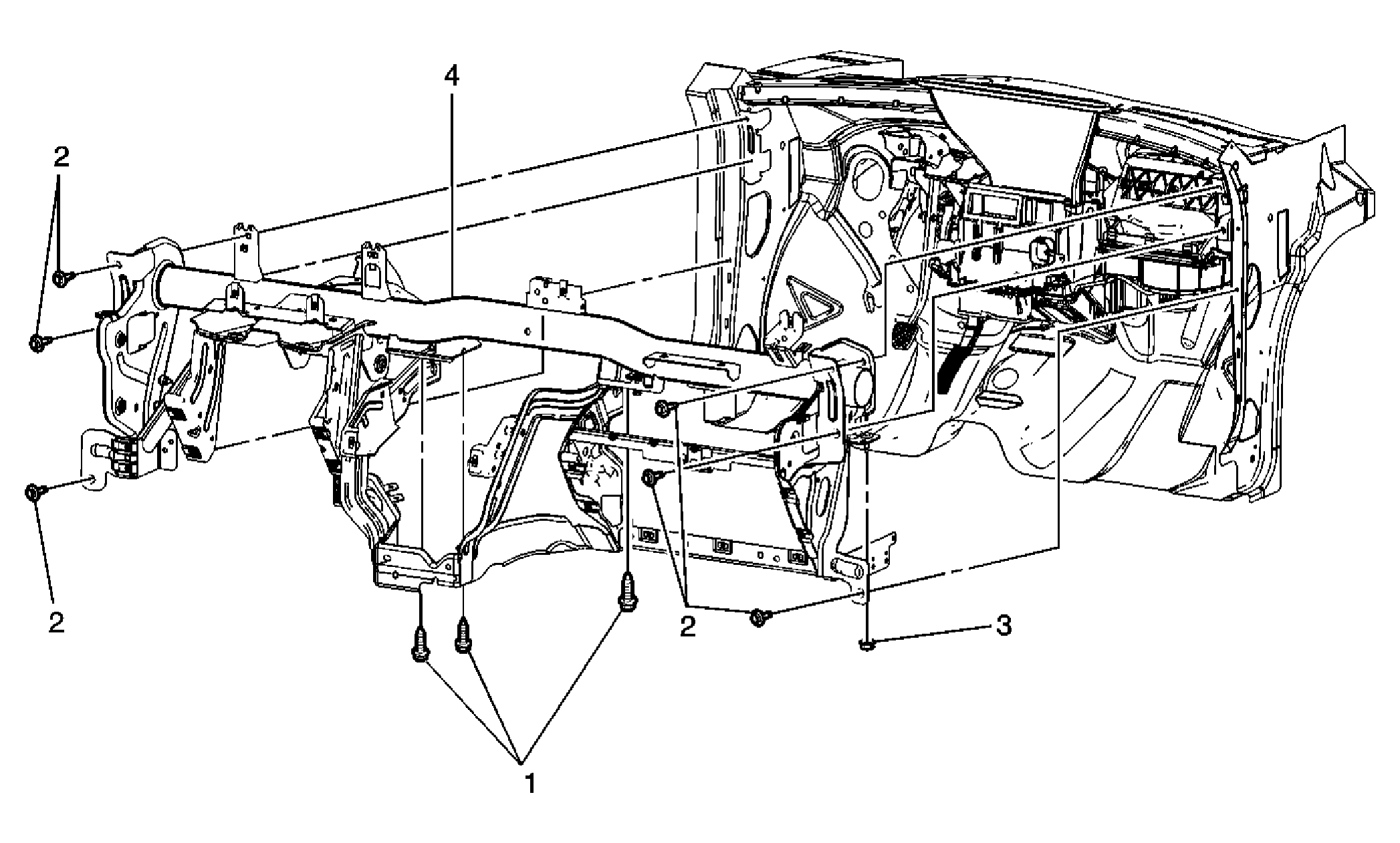

Fig 1: Identifying Instrument Panel Tie Bar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel retainer. Refer to Instrument Panel Retainer Replacement . Remove the bolts securing the brake pedal assembly to the carrier. Refer to Brake Pedal Assembly Replacement (Manual Transaxle) or Brake Pedal Assembly Replacement (Automatic Transaxle) . Remove the air distribution duct assembly. Refer to Air Distributor Duct Replacement . Remove the right defogger outlet duct assembly. Refer to Side Window Defogger Outlet Duct Replacement - Right Side . Remove the left defogger outlet duct assembly. Refer to Side Window Defogger Outlet Duct Replacement - Left Side .
1	Instrument Panel Tie Bar Assembly to HVAC Module Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (35 lb in)
2	Instrument Panel Tie Bar Assembly to Body Bolt (Qty: 6) Tighten: 25 N.m (18 lb ft)
3	Instrument Panel Tie Bar Assembly to HVAC Module Nut (Qty: 1) Tighten: 4 N.m (35 lb in)
4	Instrument Panel Tie Bar Assembly Tip: Note the routing of the wiring harness prior to removal to ensure proper reinstallation. With the aid of an assistant, remove the carrier from the vehicle.
