Air Distributor Duct Replacement

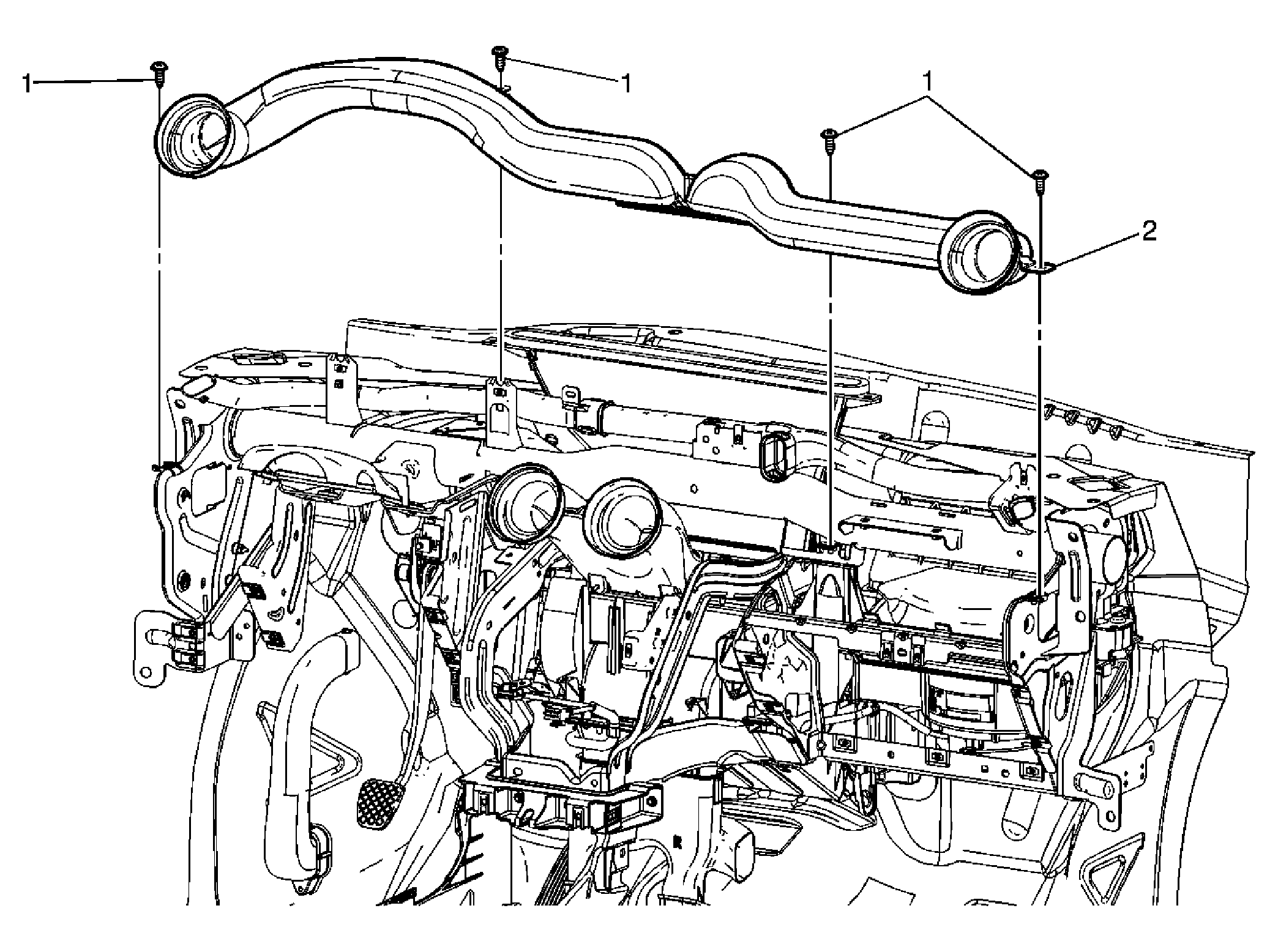

Fig 1: View Of Air Distribution Duct
GM1629005Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Remove the lower instrument panel (I/P) retainer. Refer to Instrument Panel Retainer Replacement .
  2. Remove the side window defogger duct. Refer to Side Window Defogger Outlet Duct Replacement .
1 Screw, Air Distribution Duct Assembly (Qty: 4)

Tighten:  1.5 N.m (13 lb in)
2 Air Distribution Duct Assembly
