Side Window Defogger Outlet Duct Replacement - Left Side

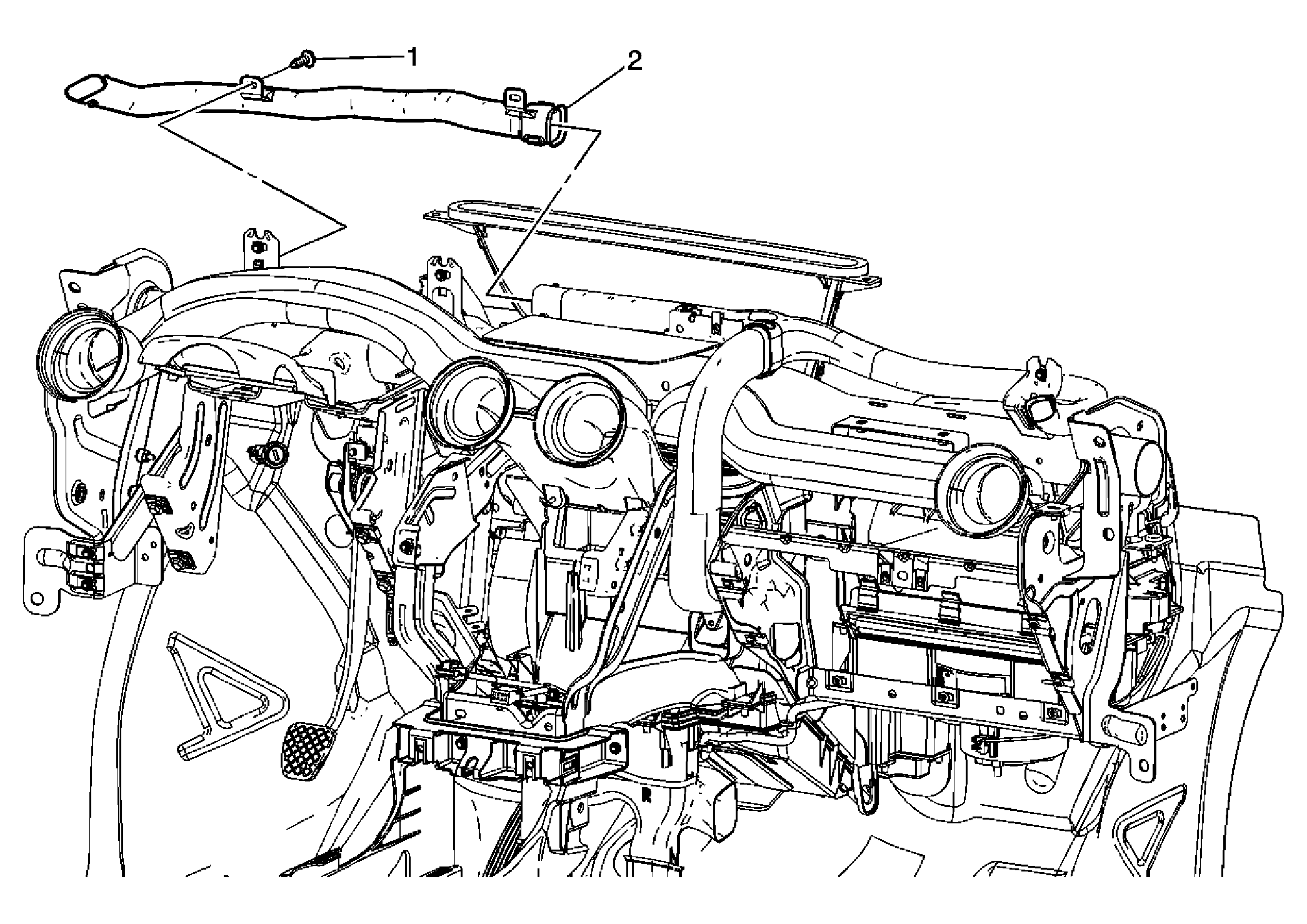

Fig 1: View Of Left Side Window Defogger Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedure:  Tip:  Pull the instrument panel tie bar back far enough to access the side window defogger outlet duct screw. Remove the instrument panel (I/P) tie bar. Refer to Instrument Panel Tie Bar Replacement .
1	Screw, Side Window Defogger Outlet Duct Assembly - Left Hand Side Tighten:  1.5 N.m (13 lb in)
2	Side Window Defogger Outlet Duct Assembly - Left Hand Side
