Side Window Defogger Outlet Duct Replacement - Right Side

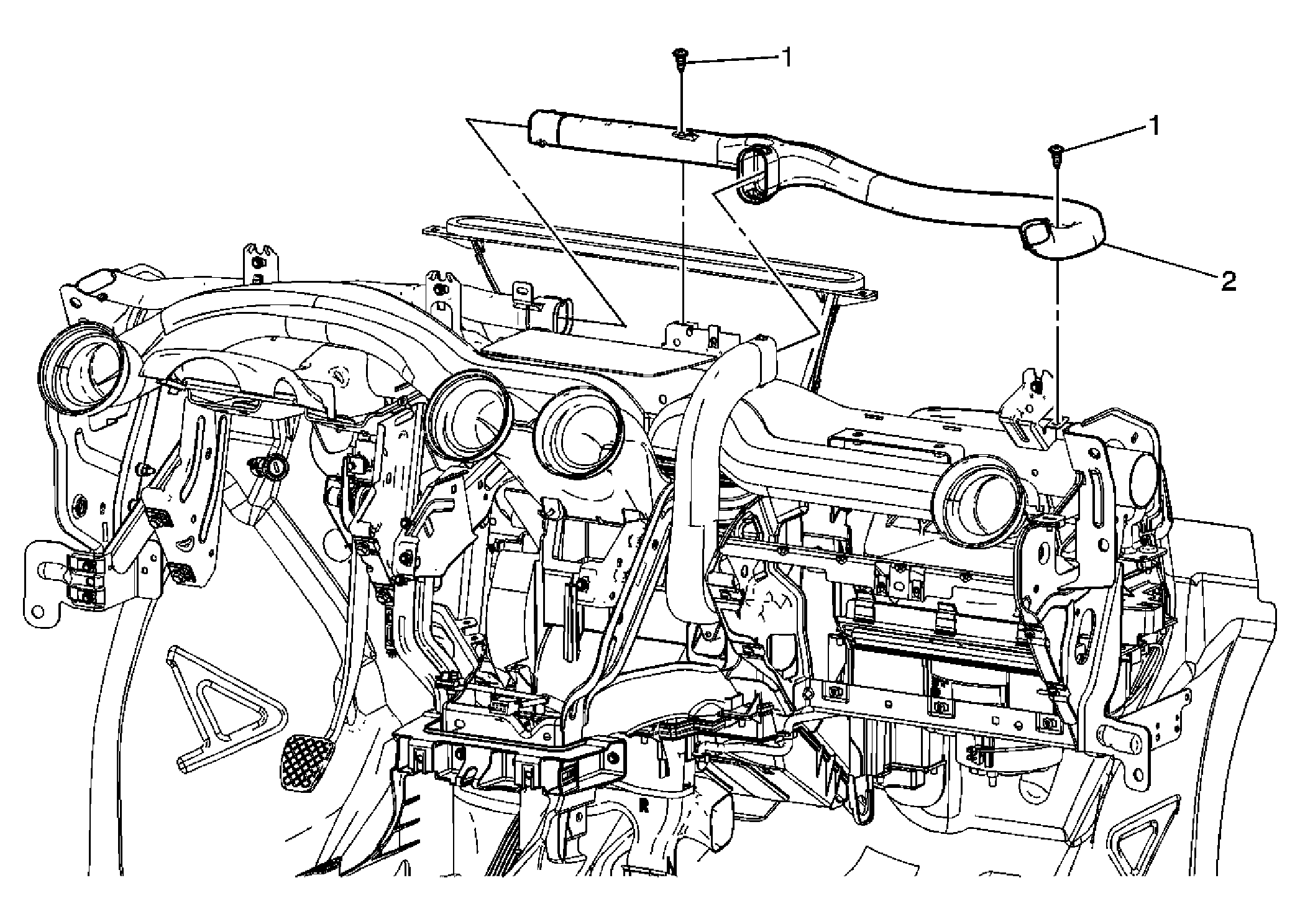

Fig 1: View Of Right Side Window Defogger Outlet Duct
GM1628104Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Tip:  Pull the instrument panel tie bar back far enough to access the side window defogger outlet duct screw.
Remove the lower instrument panel (I/P) tie bar. Refer to Instrument Panel Tie Bar Replacement .
1 Screw, Side Window Defogger Outlet Duct Assembly - Right Hand Side (Qty: 2)

Tighten:  1.5 N.m (13 lb in)
2 Side Window Defogger Outlet Duct Assembly - Right Hand Side
