Floor Panel Carpet Replacement

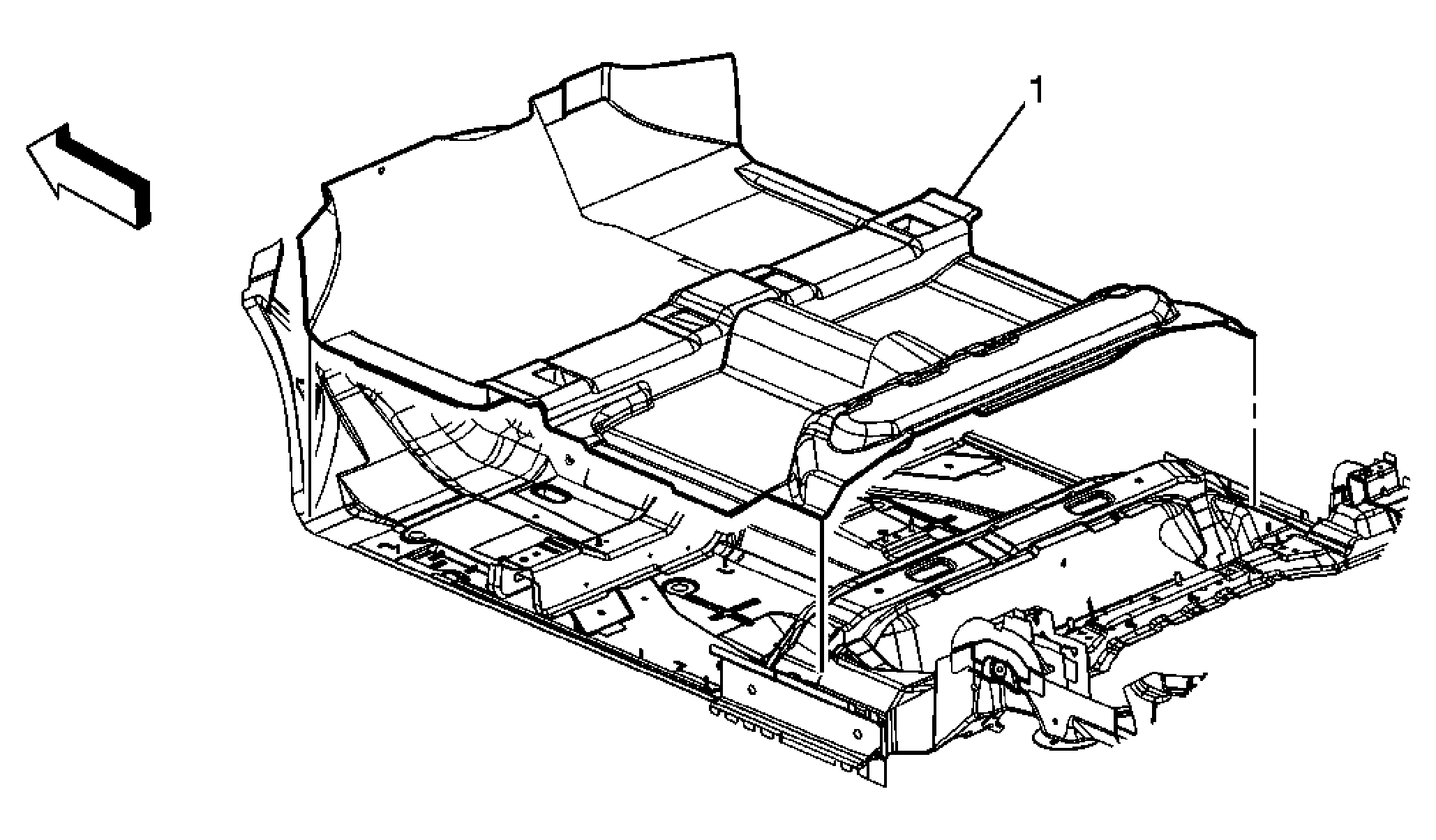

Fig 1: View Of Floor Panel Carpet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the front seats. Refer to Front Seat Replacement - Bucket . Remove the rear seat. Refer to Rear Seat Replacement . Remove the floor console. Refer to Front Floor Console Replacement . Remove the front seat belt buckles. Refer to Driver or Passenger Seat Belt Buckle Replacement . Remove the rear seat belt buckles. Refer to Rear Seat Belt Buckle Replacement . Remove the front door sill plates. Refer to Front Side Door Sill Trim Plate Replacement . Remove the rear door sill trim plates. Refer to Rear Side Door Sill Trim Plate Replacement . Remove the hinge pillar trim panels. Refer to Body Hinge Pillar Trim Panel Replacement - Left Side and Body Hinge Pillar Trim Panel Replacement - Right Side .
1	Carpet Assembly

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the front seats. Refer to Front Seat Replacement - Bucket .
Remove the rear seat. Refer to Rear Seat Replacement .
Remove the floor console. Refer to Front Floor Console Replacement .
Remove the front seat belt buckles. Refer to Driver or Passenger Seat Belt Buckle Replacement .
Remove the rear seat belt buckles. Refer to Rear Seat Belt Buckle Replacement .
Remove the front door sill plates. Refer to Front Side Door Sill Trim Plate Replacement .
Remove the rear door sill trim plates. Refer to Rear Side Door Sill Trim Plate Replacement .
Remove the hinge pillar trim panels. Refer to Body Hinge Pillar Trim Panel Replacement - Left Side and Body Hinge Pillar Trim Panel Replacement - Right Side .

Carpet Assembly
